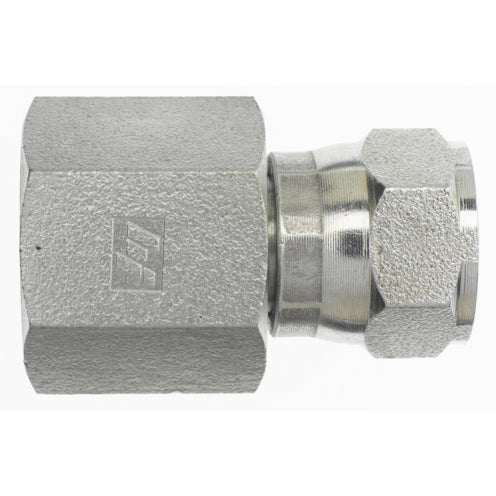

6506-06-06-SS by Brennan Inc. | -06 Female Pipe x -06 Female JIC Swivel | Straight | Stainless Steel

6506-06-06-SS by Brennan Inc. | -06 Female Pipe x -06 Female JIC Swivel | Straight | Stainless Steel

$50.30 - $50.30
$50.30
$63.81
$63.81 - $63.81
$63.81

Brennan Inc.
Tube Fittings & Adapters: 6506 - Female Pipe x Female JIC Swivel Straight
Specifications for Variant SKU: 6506-06-06-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPTF, 3/8in Female JIC
Material(s): Stainless Steel
Special Properties: Swivel
Part Number Material TUBE O.D. B NPTF A SAE37° ADrill L2 Length L5 Length C Hex C4 Hex
6506-02-04 Steel 1/4" 1/8-27" 7/16-20" 0.172" 0.920" 1.260" 0.562" 0.562"
6506-04-04 Steel 1/4" 1/4-18" 7/16-20" 0.172" 1.17" 1.52" 0.563" 0.750"
6506-04-05 Steel 5/16" 1/4-18" 1/2-20" 0.234" 1.21" 1.59" 0.625" 0.750"
6506-06-06 Steel 3/8" 3/8-18" 9/16-18" 0.297" 1.310" 1.685" 0.688" 0.875"
6506-06-08 Steel 1/2" 3/8-18" 3/4-16" 0.391" 1.360" 1.780" 0.875" 0.875"
6506-08-06 Steel 3/8" 1/2-14" 9/16-18" 0.297" 1.54" 1.92" 0.688" 1.125"
6506-08-08 Steel 1/2" 1/2-14" 3/4-16" 0.391" 1.480" 1.910" 0.875" 1.125"
6506-08-10 Steel 5/8" 1/2-14" 7/8-14" 0.484" 1.62" 2.12" 1.000" 1.125"
6506-12-12 Steel 3/4" 3/4-14" 1-1/16-12" 0.609" 1.72" 2.29" 1.250" 1.375"
6506-16-16 Steel 1" 1-11-1/2" 1-5/16-12" 0.844" 2.02" 2.614" 1.500" 1.625"
6506-20-20 Steel 1-1/4" 1-1/4-11-1/2" 1-5/8-12" 1.078" 2.200" 2.825" 2.000" 2.000"
6506-24-24 Steel 1-1/2" 1-1/2-11-1/2" 1-7/8-12" 1.312" 2.270" 2.990" 2.250" 2.375"
6506-32-32 Steel 2" 2-11-1/2" 2-1/2-12" 1.781" 2.26" 3.12" 2.875" 2.875"

6506-02-04-SS Stainless Steel 1/4" 1/8-27" 7/16-20" 0.172" 0.920" 1.260" 0.562" 0.562"
6506-04-04-SS Stainless Steel 1/4" 1/4-18" 7/16-20" 0.172" 1.17" 1.52" 0.563" 0.750"
6506-04-05-SS Stainless Steel 5/16" 1/4-18" 1/2-20" 0.234" 1.21" 1.59" 0.625" 0.750"
6506-04-06-SS Stainless Steel 3/8" 1/4-18" 9/16-18" 0.297" 1.255" 1.630" 0.688" 0.750"
6506-06-04-SS Stainless Steel 1/4" 3/8-18" 7/16-20" 0.172" 1.24" 1.59" 0.563" 0.875"
6506-06-06-SS Stainless Steel 3/8" 3/8-18" 9/16-18" 0.297" 1.310" 1.685" 0.688" 0.875"
6506-06-08-SS Stainless Steel 1/2" 3/8-18" 3/4-16" 0.391" 1.360" 1.780" 0.875" 0.875"
6506-08-06-SS Stainless Steel 3/8" 1/2-14" 9/16-18" 0.297" 1.54" 1.92" 0.688" 1.125"
6506-08-08-SS Stainless Steel 1/2" 1/2-14" 3/4-16" 0.391" 1.480" 1.910" 0.875" 1.125"
6506-08-10-SS Stainless Steel 5/8" 1/2-14" 7/8-14" 0.484" 1.62" 2.12" 1.000" 1.125"
6506-08-12-SS Stainless Steel 3/4" 1/2-14" 1-1/16-12" 0.609" 1.660" 2.230" 1.250" 1.125"
6506-12-10-SS Stainless Steel 5/8" 3/4-14" 7/8-14" 0.484" 1.680" 2.180" 1.000" 1.375"
6506-12-12-SS Stainless Steel 3/4" 3/4-14" 1-1/16-12" 0.609" 1.72" 2.29" 1.250" 1.375"
6506-16-16-SS Stainless Steel 1" 1-11-1/2" 1-5/16-12" 0.844" 2.02" 2.614" 1.500" 1.625"
6506-20-20-SS Stainless Steel 1-1/4" 1-1/4-11-1/2" 1-5/8-12" 1.078" 2.200" 2.825" 2.000" 2.000"
6506-24-24-SS Stainless Steel 1-1/2" 1-1/2-11-1/2" 1-7/8-12" 1.312" 2.270" 2.990" 2.250" 2.375"
6506-32-32-SS Stainless Steel 2" 2-11-1/2" 2-1/2-12" 1.781" 2.26" 3.12" 2.875" 2.875"
