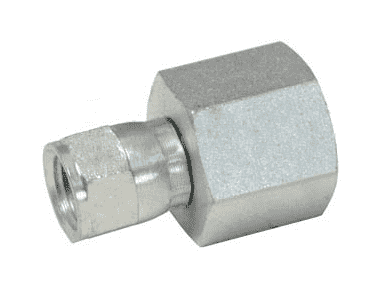

6506-4-6 Dixon Zinc Plated Steel 7/16"-20 Female 37 deg. JIC Swivel x 3/8"-18 Female NPTF Pipe

6506-4-6 Dixon Valve Zinc Plated Steel 7/16"-20 Female 37 deg. JIC Swivel x 3/8"-18 Female NPTF Pipe

Save $0.55 Save $0.55
$4.95
$4.95 - $4.95
$4.95
$4.40
$4.40 - $4.40
$4.40

SAE / JIC Fittings - Female 37 deg. JIC Swivel x Female NPTF Pipe - Zinc Plated Steel
Specifications for Variant SKU: 6506-4-6 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Female JIC, 3/8in Female NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. JIC Female Swivel Female NPTF Working Pressure Weight (Lbs.)
6506-4-4 7/16"-20 1/4"-18 4500 PSI 0.1000
6506-4-6 7/16"-20 3/8"-18 4000 PSI 0.1600
6506-6-4 9/16"-18 1/4"-18 4000 PSI N/A
6506-6-6 9/16"-18 3/8"-18 4000 PSI N/A
6506-8-8 3/4"-16 1/2"-14 3000 PSI 0.2800
6506-10-8 7/8"-14 1/2"-14 3000 PSI N/A
6506-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.5100
6506-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.6600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
