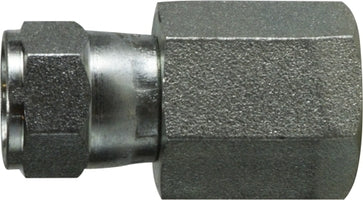

65062020 (6506-20-20) Midland Hydraulic JIC Swivel to Female Pipe Adapter - 1-5/8-12 Female JIC 37° Flare x 1-1/4" Female Pipe - Steel

65062020 by Midland | Hydraulic JIC Swivel to Female Pipe | 1-5/8-12 Female JIC 37° Flare x 1-1/4" Female Pipe | Adapter | Steel

Save $11.47 Save $11.47
$28.68
$28.68 - $28.68
$28.68
$17.21
$17.21 - $17.21
$17.21

Midland Industries
Hydraulic Adapters: JIC Swivel to Female Pipe Adapter - Steel

Inventory @ Manufacturers Warehouse: 29 Units
Specifications for Variant SKU: 65062020 Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Female NPT
Material(s): Steel
Technical Info:
Crossover Series:
6506 2242 1215
Part Number Female JIC 37° Flare
(1)		 Female JIC 37° Flare
Thread
(1)		 Female Pipe
(2)
650642
(6506-4-2)		 1/4" 7/16-20 1/8"
650644
(6506-4-4)		 1/4" 7/16-20 1/4"
650646 1/4" 7/16-20 3/8"
650664
(6506-6-4) 		3/8" 9/16-18 1/4"
650666
(6506-6-6) 		3/8" 9/16-18 3/8"
650668
(6506-6-8) 		3/8" 9/16-18 1/2"
650686
(6506-8-6) 		1/2" 3/4-16 3/8"
650688
(6506-8-8) 		1/2" 3/4-16 1/2"
6506106
(6506-10-6) 		5/8" 7/8-14 3/8"
6506108 5/8" 7/8-14 1/2"
65061012 5/8" 7/8-14 3/4"
6506128 3/4" 1-1/16-12 1/2"
65061212
(6506-12-12) 		3/4" 1-1/16-12 3/4"
65061616
(6506-16-16)		 1" 1-5/16-12 1"
65062020 1-1/4" 1-5/8-12 1-1/4"
65063232 2" 2-1/2-12 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
