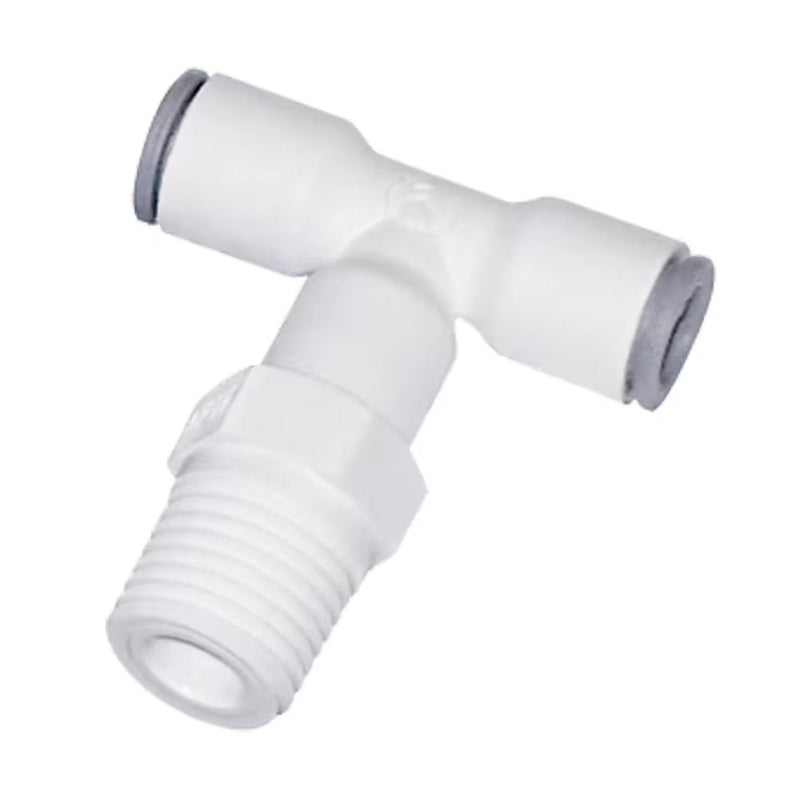

6508 08 13WP2 by Parker | Legris Stud Swivel Fitting | 8 mm Tube Size x 1/4" Male BSPT Thread | Tee | Polymer | Pack of 10

Save $32.18

$80.45

$80.45 - $80.45

$80.45

$48.27

$48.27 - $48.27

$48.27

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6508 Branch Tee, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6508 08 13WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6508 Series
Shape (Orientation):	Tee
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Swivel, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	C	F	G	H	L/2	Kg
6508 06 10WP2	6 mm	1/8"	13 mm	10.5 mm	28 mm	18 mm	.008 Kg
6508 06 13WP2	6 mm	1/4"	14 mm	10.5 mm	28 mm	18 mm	.009 Kg
6508 06 17WP2	6 mm	3/8"	17 mm	10.5 mm	28 mm	18 mm	.010 Kg
6508 08 10WP2	8 mm	1/8"	19 mm	13.5 mm	34 mm	23 mm	.012 Kg
6508 08 13WP2	8 mm	1/4"	19 mm	13.5 mm	34 mm	23 mm	.013 Kg
6508 08 17WP2	8 mm	3/8"	19 mm	13.5 mm	34 mm	23 mm	.013 Kg
6508 10 13WP2	10 mm	1/4"	19 mm	16 mm	38 mm	26.5 mm	.018 Kg
6508 10 21WP2	10 mm	1/2"	22 mm	16 mm	38 mm	26.5 mm	.022 Kg

Thread without pre-coating, the body swivels for positioning purposes
