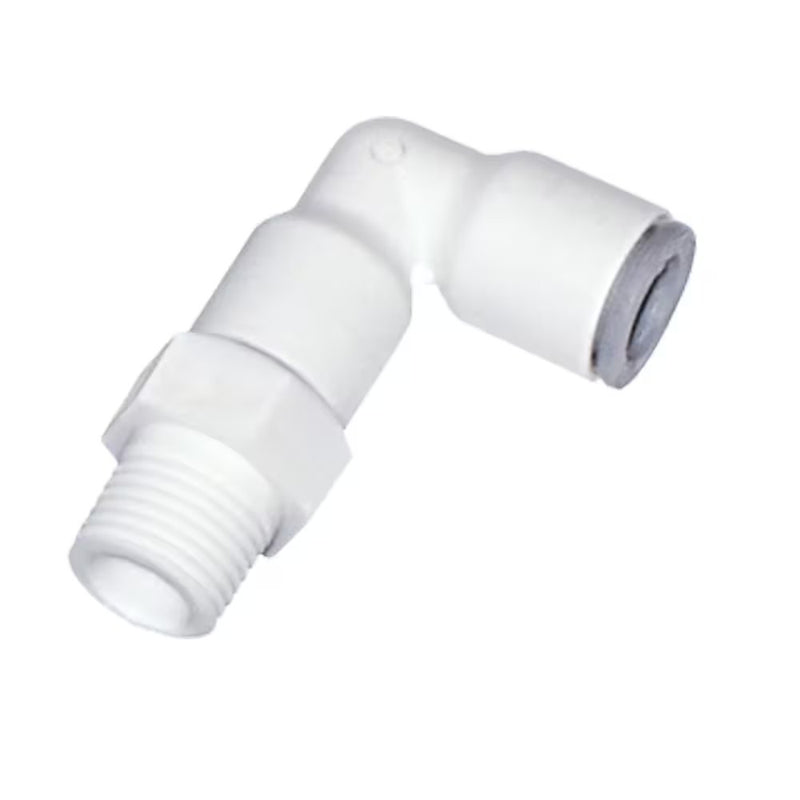

6509 10 17WP2 by Parker | Legris Stud Swivel Fitting | 10 mm Tube Size x 3/8" Male BSPT Thread | 90° Elbow | Polymer

Name: 6509 10 17WP2 by Parker | Legris Stud Swivel Fitting | 10 mm Tube Size x 3/8" Male BSPT Thread | 90° Elbow | Polymer
Brand: Parker Fluid Connections Division
SKU: 6509 10 17WP2 Parker
Price: 5.57 USD
Availability: InStock

Save $3.71

$9.28

$9.28 - $9.28

$9.28

$5.57

$5.57 - $5.57

$5.57

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6509 Stud Elbow, Male BSPT Thread

Specifications for Variant SKU: 6509 10 17WP2 Parker
Brand:	LIQUIfit®
Series:	6509 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Swivel, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	C	F	G	H	L	Kg
6509 06 10WP2	6 mm	1/8"	13 mm	10.5 mm	28 mm	24 mm	.037 Kg
6509 06 13WP2	6 mm	1/4"	14 mm	10.5 mm	28 mm	24 mm	.007 Kg
6509 06 17WP2	6 mm	3/8"	17 mm	10.5 mm	28 mm	24 mm	.008 Kg
6509 08 10WP2	8 mm	1/8"	19 mm	13.5 mm	34 mm	29.5 mm	.010 Kg
6509 08 13WP2	8 mm	1/4"	19 mm	13.5 mm	34 mm	29.5 mm	.011 Kg
6509 08 17WP2	8 mm	3/8"	19 mm	13.5 mm	34 mm	29.5 mm	.011 Kg
6509 10 13WP2	10 mm	1/4"	19 mm	16 mm	38 mm	34.5 mm	.019 Kg
6509 10 17WP2	10 mm	3/8"	19 mm	16 mm	38 mm	34.5 mm	.020 Kg
6509 10 21WP2	10 mm	1/2"	22 mm	16 mm	38 mm	34.5 mm	.023 Kg
6509 12 17WP2	12 mm	3/8"	22 mm	19 mm	44 mm	40 mm	.022 Kg
6509 12 21WP2	12 mm	1/2"	22 mm	19 mm	44 mm	40 mm	.024 Kg

Thread without pre-coating; the body swivels for positioning purposes
