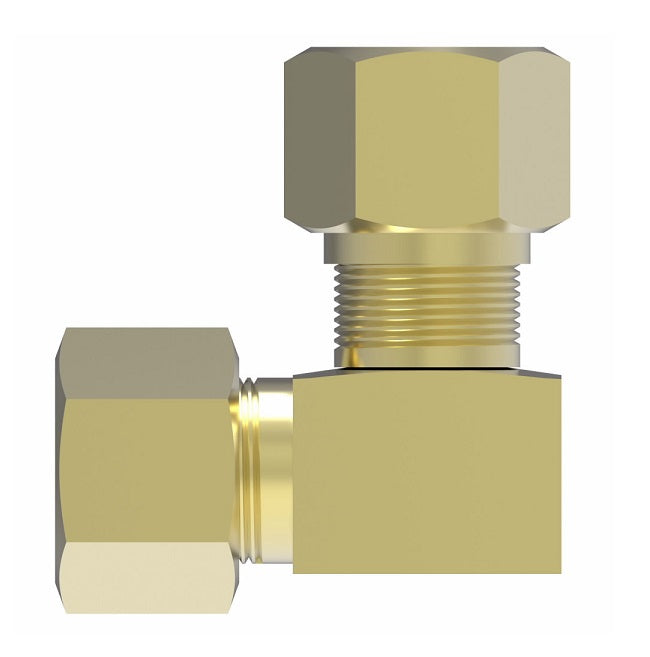

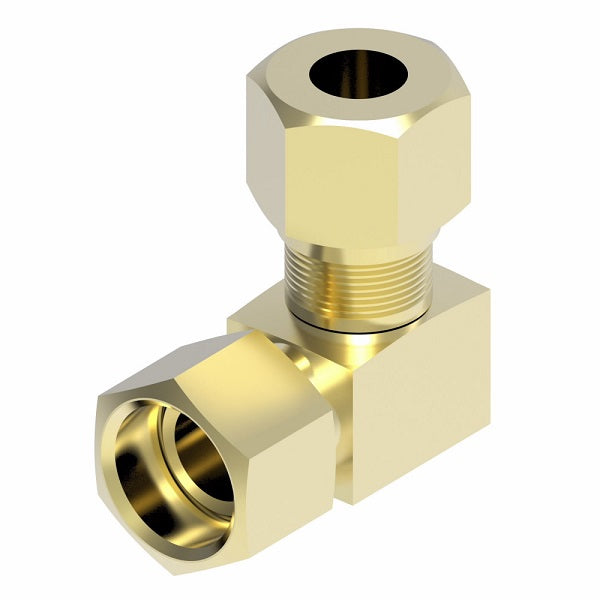

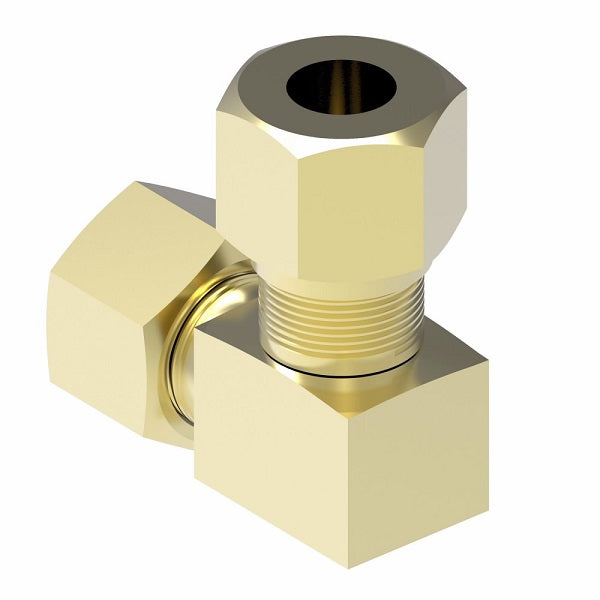

651X4 by Danfoss | SelfAlign Adapter | Union 90° Elbow | 1/4" Tube OD x 1/4" Tube OD | Brass
651X4 by Danfoss | SelfAlign Adapter | Union 90° Elbow | 1/4" Tube OD x 1/4" Tube OD | Brass
651X4 by Danfoss | SelfAlign Adapter | Union 90° Elbow | 1/4" Tube OD x 1/4" Tube OD | Brass
651X4 by Danfoss | SelfAlign Adapter | Union 90° Elbow | 1/4" Tube OD x 1/4" Tube OD | Brass

651X4 by Danfoss | SelfAlign Adapter | Union 90° Elbow | 1/4" Tube OD x 1/4" Tube OD | Brass

$8.81 - $8.81
$8.81
$8.81 - $8.81
$8.81

Aeroquip® by Danfoss
SelfAlign Adapter - Union
SelfAlign End x SelfAlign End
90° Elbow
Specifications for Variant SKU: 651X4 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. D M
651X4 1/4" 0.188" 0.60"
651X6 3/8" 0.312" 0.75"
