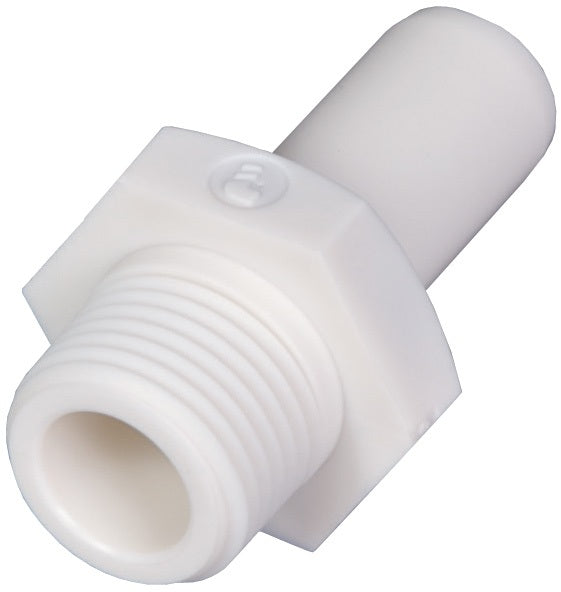

65215614WP2 by Dixon Valve | LIQUIfit™ Fitting | Stem Adapter | 1/4" Male NPTF x 1/4" Tube OD | Nylon

Name: 65215614WP2 by Dixon Valve | LIQUIfit™ Fitting | Stem Adapter | 1/4" Male NPTF x 1/4" Tube OD | Nylon
Brand: Dixon
SKU: 65215614WP2 Dixon
Price: 1.03 USD
Availability: InStock

Save $0.10

$1.13

$1.13 - $1.13

$1.13

$1.03

$1.03 - $1.03

$1.03

Dixon Valve
LIQUIfit™ Fitting | Stem Adapter

Suitable for water, potable liquids, and neutral gas applications: including water filtration, water coolers, coffee machines, and beverage dispensers.

Quantity

Specifications for Variant SKU: 65215614WP2 Dixon
Brand:	LIQUIfit
Series:	6521 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Push-to-Connect, 1/4in Male NPTF
Material(s):	Nylon
Seal Material(s):	EPDM

Features:
EPDM seal secures connection with larger surface area than standard O-rings. Engineered polymer allows superior mechanical strength and chemical resistance. Full stainless gripping ring eliminates the need for locking clips. Release button protects and supports tubing.
Material:
Nylon
Approvals:
FDA compliant Meets California and Vermont <0.25% lead requirements NSF-51 listed for contact with food NSF-61 list C-Hot rated
Specifications:
Working Pressure: 1/4" 230 PSI from 35°F to 100°F (1.7°C to 38°C) 150 PSI at 150°F (66°C) 60 PSI at 200°F (93°C) 3/8" 190 PSI from 35°F to 100°F (1.7°C to 38°C) 100 PSI at 150°F (66°C) 60 PSI at 200°F (93°C) 1/2" 160 PSI from 35°F to 100°F (1.7°C to 38°C) 100 PSI at 150°F (66°C) 60 PSI at 200°F (93°C) Maximum torque values for NPTF threads: 1/8" and 1/4" 1.0 ft. lbs. / 1.5Nm 3/8" and 1/2" 2.2 ft. lbs. / 3.0Nm

Part Number	Tube O.D.	Male NPTF
65215614WP2	1/4"	1/4"
65215618WP2	1/4"	3/8"
65216014WP2	3/8"	1/4"
65216018WP2	3/8"	3/8"
65216218WP2	1/2"	3/8"
65216222WP2	1/2"	1/2"
