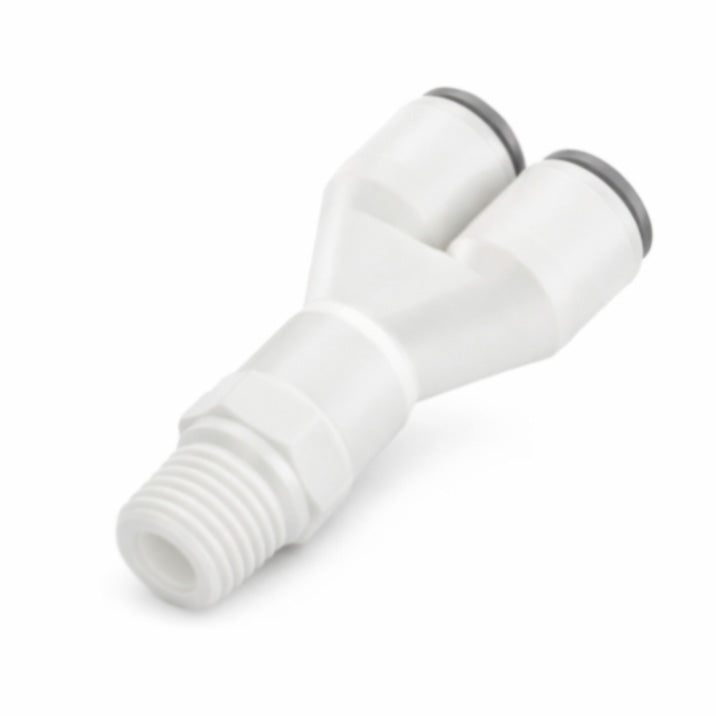

6548 62 22WP2 by Parker | LIQUIfit® Threaded Fitting | 1/2" Connector x 1/2" Male NPTF Thread | 15/16" Hex | 1.78" Length | Y | Polypropylene

6548 62 22WP2 by Parker | LIQUIfit® Threaded Fitting | 1/2" Connector x 1/2" Male NPTF Thread | 15/16" Hex | 1.78" Length | Y | Polypropylene | Pack of 4

Save $1.83 Save $1.83
$29.14
$29.14 - $29.14
$29.14
$27.31
$27.31 - $27.31
$27.31

by Parker Hannifin
LIQUIfit Fittings:6548 Swivel Y Connector Inch Tube to NPTF

Package Quantity: 4 Units

Specifications for Variant SKU: 6548 62 22WP2 Parker | 4 |
Brand: LIQUIfit®
Series: 6548 Series
Shape (Orientation): Y
Material(s): Nylon, Stainless Steel
Seal Material(s): EPDM
Special Properties: Swivel, Silicone Free, Food Grade
Product Features:
  • Stainless steel grab ring
  • Bio-sourced nylon 11
  • EPDM D – seal
  • FDA compliant, NSF/ANSI 51 and NSF/ANSI/CAN 61
  • Silicone free
  • 100% leak tested in production
  • Date coding to guarantee quality and traceability
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Food
  • CO2
  • Vacuum
Pressure Range: Up to 230 PSI (16 bar)
Temperature Range: +35° to +200° F (+1.7° to +93.3° C)
Compatible Tubing:
  • Polyethylene
Part Number Tube Size NPTF C Hex L H N
6548 56 11WP2 1/4" 1/8" 1/2" 1.59" .88" .45"
6548 56 14WP2 1/4" 1/4" 1/2" 1.59" .88" .45"
6548 56 18WP2 1/4" 3/8" 3/4" 1.62" .88" .45"
6548 60 14WP2 3/8" 1/4" 3/4" 2.24" 1.30" .66"
6548 60 18WP2 3/8" 3/8" 3/4" 2.24" 1.30" .66"
6548 62 18WP2 1/2" 3/8" 15/16" 2.80" 1.78" .91"
6548 62 22WP2 1/2" 1/2" 15/16" 2.84" 1.78" .91"
