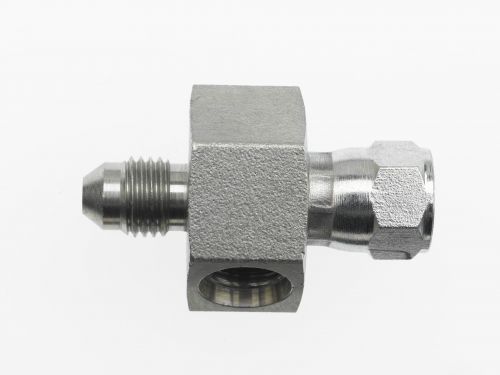

6564-06-06-04 by Brennan Inc. | -06 Male JIC x -06 Female JIC Swivel x -04 Female O-Ring Boss | Tee | Steel

6564-06-06-04 by Brennan Inc. | -06 Male JIC x -06 Female JIC Swivel x -04 Female O-Ring Boss | Tee | Steel

$9.17 - $9.17
$9.17
$11.63
$11.63 - $11.63
$11.63

Brennan Inc.
Test Point Fittings: 6564 - Male JIC x Female JIC Swivel x Female O-Ring Boss Tee (Testpoint)
Specifications for Variant SKU: 6564-06-06-04 Brennan
Shape (Orientation): Tee
Ends Configuration: 3/8in Male JIC, 3/8in Female JIC, 1/4in Female O-Ring Boss, Some Ends Match
Material(s): Steel
Special Properties: Swivel
Part Number Material TubeO.D. AMale JIC BFemale JIC Swivel CFemale O-Ring Boss ADrill BDrill L1Length LLength C1Hex CHex
6564-04-04-04 Steel 1/4" 7/16-20" 7/16-20" 7/16-20" 0.172" 0.172" 1.480" 1.830" 0.563" 1.062"
6564-06-06-04 Steel 3/8" 9/16-18" 9/16-18" 7/16-20" 0.297" 0.297" 1.570" 1.950" 0.688" 1.062"
6564-08-08-04 Steel 1/2" 3/4-16" 3/4-16" 7/16-20" 0.391" 0.391" 1.758" 2.180" 0.875" 1.062"
6564-10-10-04 Steel 5/8" 7/8-14" 7/8-14" 7/16-20" 0.484" 0.484" 1.900" 2.400" 1.000" 1.125"
6564-12-12-04 Steel 3/4" 1-1/16-12" 1-1/16-12" 7/16-20" 0.609" 0.609" 2.020" 2.590" 1.250" 1.250"
6564-16-16-04 Steel 1" 1-5/16-12" 1-5/16-12" 7/16-20" 0.844" 0.844" 2.250" 2.850" 1.500" 1.500"
6564-20-20-04 Steel 1-1/4" 1-5/8-12" 1-5/8-12" 7/16-20" 1.078" 1.078" 2.440" 3.070" 2.000" 1.750"
6564-24-24-04 Steel 1-1/2" 1-7/8-12" 1-7/8-12" 7/16-20" 1.312" 1.312" 2.500" 3.240" 2.250" 2.125"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
