6570-4-1/8 by AIGNEP | Ball Valves Series | Ball Valve | 4mm Tube x 1/8" Male BSPT
6570-4-1/8 by AIGNEP | Ball Valves Series | Ball Valve | 4mm Tube x 1/8" Male BSPT

6570-4-1/8 by AIGNEP | Ball Valves Series | Ball Valve | 4mm Tube x 1/8" Male BSPT

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 6570-4-1/8 AIGNEP
Series: Ball Valves Series
Shape (Orientation): Straight
Ends Configuration: 4mm Push-to-Connect, 1/8in Male BSPT
Material(s): Chrome Plated Brass

Metric Tube x Male

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, gas (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: BSPT

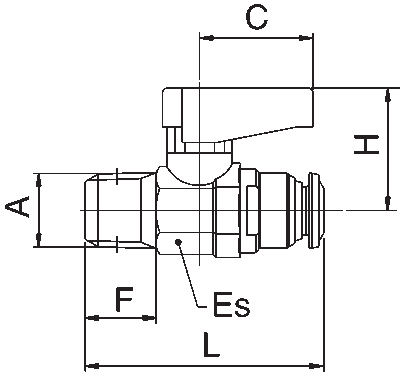

Product Number Tube Thread Type A F L1 Es C F H
6570-4-1/8 4 mm BSPT 1/8" 0.334" 35 mm 14-15 mm 19 mm 8.5 mm 21 mm
6570-6-1/4 6 mm BSPT 1/4" 0.492" 38.5 mm 14-15 mm 19 mm 12.5 mm 21 mm
6570-6-1/8 6 mm BSPT 1/8" 0.334" 40 mm 14-15 mm 19 mm 8.5 mm 21 mm
6570-8-1/4 8 mm BSPT 1/4" 0.492" 45.5 mm 14-15 mm 19 mm 12.5 mm 22 mm
6570-8-1/8 8 mm BSPT 1/8" 0.334" 41.5 mm 14-15 mm 19 mm 8.5 mm 21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
