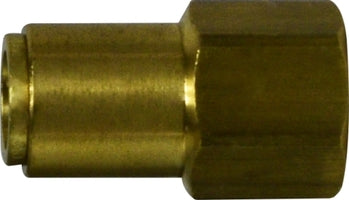

660604 Midland DOT Push-In Fitting - Female Connector - 3/8" Tube OD x 1/4" Female NPTF - Brass

660604 by Midland | DOT Push-In Fitting | Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass

Save $0.54 Save $0.54
$7.42
$7.42 - $7.42
$7.42
$6.88
$6.88 - $6.88
$6.88

Midland Industries
Brass Fitting - D.O.T. Push-in Tube Fitting - Female Connector - Brass

Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements.

DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon® based pipe sealant to provide for easy assembly and leak proof seal.

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 921 Units
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 660604 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 1/4in Female NPTF
Material(s): Brass
Seal Material(s): Buna
Applicable Specs & Approvals: D.O.T. FMVSS 571.106, SAE J1131

SPECIFICATIONS

Working Pressure: Vacuum to 150 PSI Temperature Range: -40°F to 200° F ( -40°C to +93°C )
Features:
  • Fast Assembly: No tools required. Simply push tubing in. Saves up to 75% of assembly time compared to standard air compression fittings. No loose parts to handle.
  • Fast Disconnect: Hold the collet collar with two fingers and pull out tube. No tools required.
  • Reusable: Can be connected and disconnected several times.
  • Reliable Sealing: Using recommended tubing, full sealing is guaranteed.
  • Versatility: Buna N O'ring standard. Viton and others available per request. Secure tube retention. Pulling on tubing only serves to tighten the connection.
  • Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor.
  • Full Flow Design
Materials:
  • Brass
  • "O" Ring: Buna - Nitrile (90 Durometer) EP (Ethylene Propylene)
Crossover Series:
AQ66DOT DQ66 66PMT 1866 DQ66DOT
Part Number Tube OD x Female NPTF Approx. Weight
(Lbs.)
660402 1/4" x 1/8" 0.06
660404 1/4" x 1/4" 0.10
660602 3/8" x 1/8" 0.11
660604 3/8" x 1/4" 0.11
660606 3/8" x 3/8" 0.17
660804 1/2" x 1/4" 0.14
660806 1/2" x 3/8" 0.16
660808 1/2" x 1/2" 0.25
