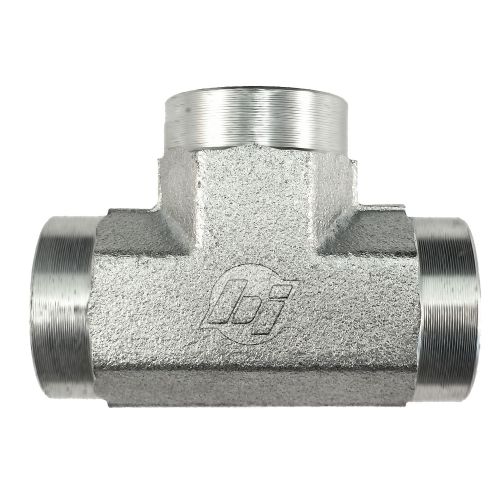

6660-24-24-24-FG by Brennan Inc. | -24 Female O-Ring Boss x -24 Female O-Ring Boss x -24 Female O-Ring Boss | Tee | Forged Steel

6660-24-24-24-FG by Brennan Inc. | -24 Female O-Ring Boss x -24 Female O-Ring Boss x -24 Female O-Ring Boss | Tee | Forged Steel

$98.45 - $98.45
$98.45
$124.92
$124.92 - $124.92
$124.92

Brennan Inc.
Tube Fittings & Adapters: 6660 - Female O-Ring Boss x Female O-Ring Boss x Female O-Ring Boss Tee
Specifications for Variant SKU: 6660-24-24-24-FG Brennan
Shape (Orientation): Tee
Ends Configuration: 1-1/2in Female O-Ring Boss, 1-1/2in Female O-Ring Boss, 1-1/2in Female O-Ring Boss, Some Ends Match
Material(s): Steel
Part Number Material A1
Female
ORB		 A2
Female
ORB		 A3
Female
ORB		 N1
Length		 N2
Length		 N3
Length		 Y
Flats
6660-04-04-04-FG Forged Steel 7/16-20" 7/16-20" 7/16-20" 0.740" 0.740" 0.740" 0.750"
6606-06-06-06-FG Forged Steel 9/16-18" 9/16-18" 9/16-18" 0.860" 0.860" 0.860" 0.750"
6660-08-08-08-FG Forged Steel 3/4-16" 3/4-16" 3/4-16" 1.030" 1.030" 1.030" 1.062"
6660-10-10-10-FG Forged Steel 7/8-14" 7/8-14" 7/8-14" 1.180" 1.180" 1.180" 1.062"
6660-12-12-12-FG Forged Steel 1-1/16-12" 1-1/16-12" 1-1/16-12" 1.390" 1.390" 1.390" 1.312"
6660-16-16-16-FG Forged Steel 1-5/16-12" 1-5/16-12" 1-5/16-12" 1.520" 1.520" 1.520" 1.625"
6660-20-20-20-FG Forged Steel 1-5/8-12" 1-5/8-12" 1-5/8-12" 1.700" 1.700" 1.700" 2.000"
6660-24-24-24-FG Forged Steel 1-7/8-12" 1-7/8-12" 1-7/8-12" 2.080" 2.080" 2.080" 2.562"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
