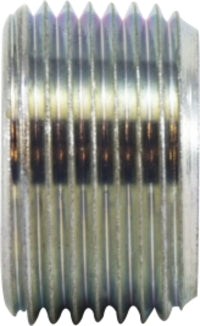

66704 (66-704) by Midland | Steel Fitting | Face Bushing | 1/2" Male NPTF x 1/4" Female NPTF | Straight | Zinc Plated Steel

Save $0.29

$1.88

$1.88 - $1.88

$1.88

$1.59

$1.59 - $1.59

$1.59

Midland Industries
Steel Fitting - Face Bushing - Male NPTF x Female NPTF - Zinc Plated Steel

Lead Free

Pressure rating: 150/300 PSI

Quantity

Specifications for Variant SKU: 66704 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPTF, 1/4in Female NPTF, Some Ends Match
Material(s):	Zinc Plated Steel
Applicable Specs & Approvals:	ASME B16.14 - 1991, ASTM B633-07, QQ-Z-325, ROHS Compliant

Features:
This will certify that the material was manufactured in accordance with ASME B16.14 - 1991 Standards. All Threads are Dryseal (NPTF) - 3/4 inch taper per foot and are made of Carbon Steel 12L14. Clear Zinc plating specifications ASTM B633-07 Type III with supplemental clear Trivalent chromate. .00015" Zinc (Minimum)
Specifications:
Federal Specification QQ-Z-325 (Zinc Plate) ROHS Compliant


Part Number	Male NPTF x Female NPTF	A	Approx. Weight (Lbs.)
66700 (66-700)	1/4" x 1/8"	0.44"	0.01
66701 (66-701)	3/8" x 1/8"	0.48"	0.02
66702 (66-702)	3/8" x 1/4"	0.48"	0.02
66704 (66-704)	1/2" x 1/4"	0.56"	0.04
66705 (66-705)	1/2" x 3/8"	0.56"	0.04
66708 (66-708)	3/4" x 3/8"	0.62"	0.10
66709 (66-709)	3/4" x 1/2"	0.62"	0.10
66712 (66-712)	1" x 1/2"	0.75"	0.16
66713 (66-713)	1" x 3/4"	0.75"	0.16

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
