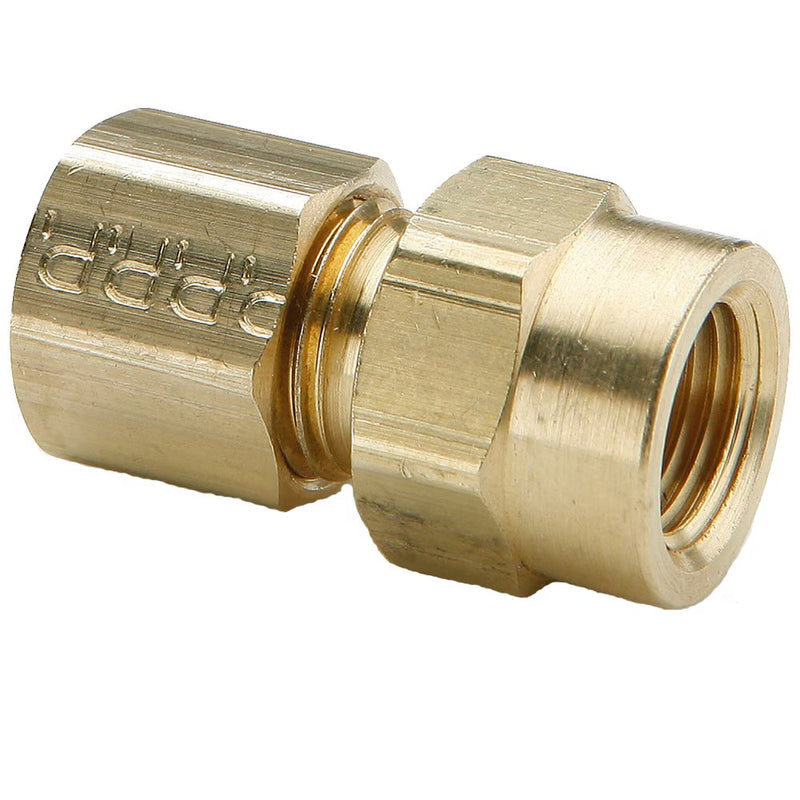

66C-5-4 by Parker | Compression Fitting | 5/16" Tube Size Connector x 1/4" Female Pipe Thread x 1/2" Straight Thread | 11/16" Hex | 1.29" Length | Straight | Brass | Pack of 10

66C-5-4 by Parker | Compression Fitting | 5/16" Tube Size Connector x 1/4" Female Pipe Thread x 1/2" Straight Thread | 11/16" Hex | 1.29" Length | Straight | Brass | Pack of 10

Save $45.55 Save $45.55
$113.87
$113.87 - $113.87
$113.87
$68.32
$68.32 - $68.32
$68.32

by Parker Hannifin
Compression Fittings:Female Connector 66C

Package Quantity: 10 Units

Specifications for Variant SKU: 66C-5-4 Parker | 10 |
Series: 66C Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: UL Listed
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
66C-2-2 1/8" 1/8" 5/16"-24 9/16" .95" .75" .094"
66C-3-2 3/16" 1/8" 3/8"-24 9/16" 1.02" .78" .125"
66C-3-4 3/16" 1/4" 3/8"-24 11/16" 1.20" .96" .125"
66C-4-2 1/4" 1/8" 7/16"-24 9/16" 1.02" .78" .188"
66C-4-4 1/4" 1/4" 7/16"-24 11/16" 1.24" 1.00" .188"
66C-5-2 5/16" 1/8" 1/2"-24 9/16" 1.07" .81" .250"
66C-5-4 5/16" 1/4" 1/2"-24 11/16" 1.29" 1.03" .250"
66C-6-2 3/8" 1/8" 9/16"-24 9/16" 1.06" .78" .312"
66C-6-4 3/8" 1/4" 9/16"-24 11/16" 1.34" 1.06" .312"
66C-6-6 3/8" 3/8" 9/16"-24 13/16" 1.34" 1.06" .312"
66C-6-8 3/8" 1/2" 9/16"-24 1" 1.54" 1.27" .312"
66C-7-6 7/16" 3/8" 5/8"-24 13/16" 1.43" 1.09" .312"
66C-8-4 1/2" 1/4" 11/16"-20 11/16" 1.49" 1.09" .406"
66C-8-6 1/2" 3/8" 11/16"-20 13/16" 1.52" 1.12" .406"
66C-8-8 1/2" 1/2" 11/16"-20 1" 1.71" 1.31" .406"
66C-10-8 5/8" 1/2" 5/16"-18 1" 1.80" 1.38" .500"
