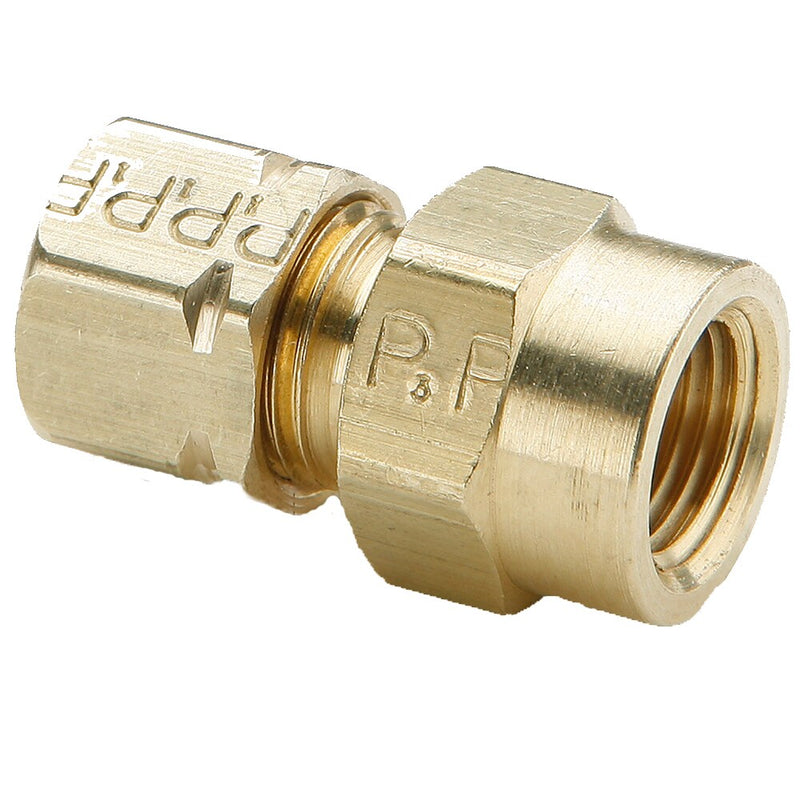

66CA-3-2 by Parker | Compress-Align® Fittings | 3/16" Tube Size Connector x 1/8" Female Pipe Thread x 3/8" Thread | 9/16" Hex | 1.01" Length | Straight | Brass | Pack of 25

66CA-3-2 by Parker | Compress-Align® Fittings | 3/16" Tube Size Connector x 1/8" Female Pipe Thread x 3/8" Thread | 9/16" Hex | 1.01" Length | Straight | Brass | Pack of 25

Save $66.59 Save $66.59
$166.47
$166.47 - $166.47
$166.47
$99.88
$99.88 - $99.88
$99.88

by Parker Hannifin
Compress-Align® Fittings:Female Connector 66CA

Package Quantity: 25 Units

Specifications for Variant SKU: 66CA-3-2 Parker | 25 |
Brand: Compress-Align
Series: 66CA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
66CA-2-2 1/8" 1/8" 5/16"-24 9/16" .99" .75" .094"
66CA-3-2 3/16" 1/8" 3/8"-24 9/16" 1.01" .78" .125"
66CA-3-4 3/16" 1/4" 3/8"-24 11/16" 1.19" .96" .125"
66CA-4-2 1/4" 1/8" 7/16"-24 9/16" 1.02" .78" .188"
66CA-4-4 1/4" 1/4" 7/16"-24 11/16" 1.24" 1.00" .188"
66CA-5-2 5/16" 1/8" 1/2"-24 9/16" 1.05" .81" .250"
66CA-5-4 5/16" 1/4" 1/2"-24 11/16" 1.27" 1.03" .250"
66CA-6-2 3/8" 1/8" 9/16"-24 9/16" 1.00" .78" .312"
66CA-6-4 3/8" 1/4" 9/16"-24 11/16" 1.28" 1.06" .312"
66CA-6-6 3/8" 3/8" 9/16"-24 13/16" 1.29" 1.06" .312"
66CA-6-8 3/8" 1/2" 9/16"-24 1" 1.49" 1.27" .312"
66CA-8-4 1/2" 1/4" 11/16"-20 11/16" 1.32" 1.09" .406"
66CA-8-6 1/2" 3/8" 11/16"-20 13/16" 1.35" 1.12" .406"
66CA-8-8 1/2" 1/2" 11/16"-20 1" 1.54" 1.31" .500"
66CA-10-8 5/8" 1/2" 13/16"-18 1" 1.62" 1.38" .500"
