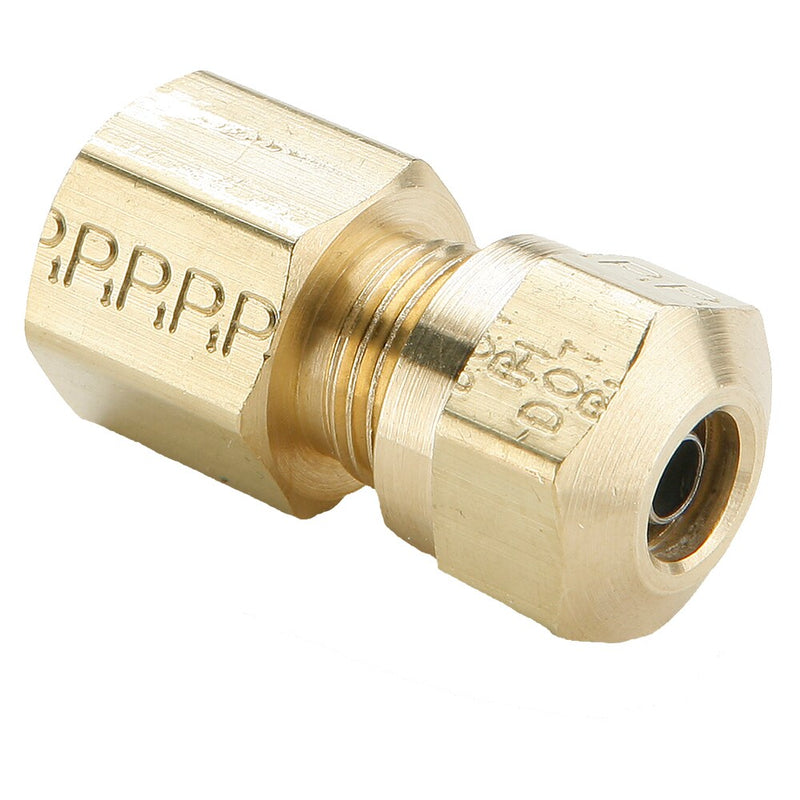

66NTA-10-6 by Parker | Air Brake–NTA® Fittings | 5/8" Tube Size Connector x 3/8" Female Pipe Thread x 13/16" Thread | 7/8" Hex | 1.80" Length | Straight | Brass | Pack of 10

66NTA-10-6 by Parker | Air Brake–NTA® Fittings | 5/8" Tube Size Connector x 3/8" Female Pipe Thread x 13/16" Thread | 7/8" Hex | 1.80" Length | Straight | Brass | Pack of 10

Save $36.71 Save $36.71
$403.82
$403.82 - $403.82
$403.82
$367.11
$367.11 - $367.11
$367.11

by Parker Hannifin
Air Brake–NTA® Fittings:Female Connector 66NTA

Package Quantity: 10 Units

Specifications for Variant SKU: 66NTA-10-6 Parker | 10 |
Brand: Air Brake–NTA®
Series: 66NTA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
66NTA-4-2 1/4" 1/8" 7/16"-24 9/16" 1.17" .84" .137"
66NTA-4-4 1/4" 1/4" 7/16"-24 11/16" 1.40" 1.07" .137"
66NTA-6-2 3/8" 1/8" 17/32"-24 9/16" 1.46" 1.00" .217"
66NTA-6-4 3/8" 1/4" 17/32"-24 11/16" 1.64" 1.18" .217"
66NTA-6-6 3/8" 3/8" 17/32"-24 7/8" 1.64" 1.18" .217"
66NTA-8-6 1/2" 3/8" 11/16"-20 7/8" 1.79" 1.27" .338"
66NTA-8-8 1/2" 1/2" 11/16"-20 1-1/16" 1.96" 1.44" .338"
66NTA-10-6 5/8" 3/8" 13/16"-18 7/8" 1.80" 1.31" .398"
66NTA-10-8 5/8" 1/2" 13/16"-18 1-1/16" 1.99" 1.50" .398"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
