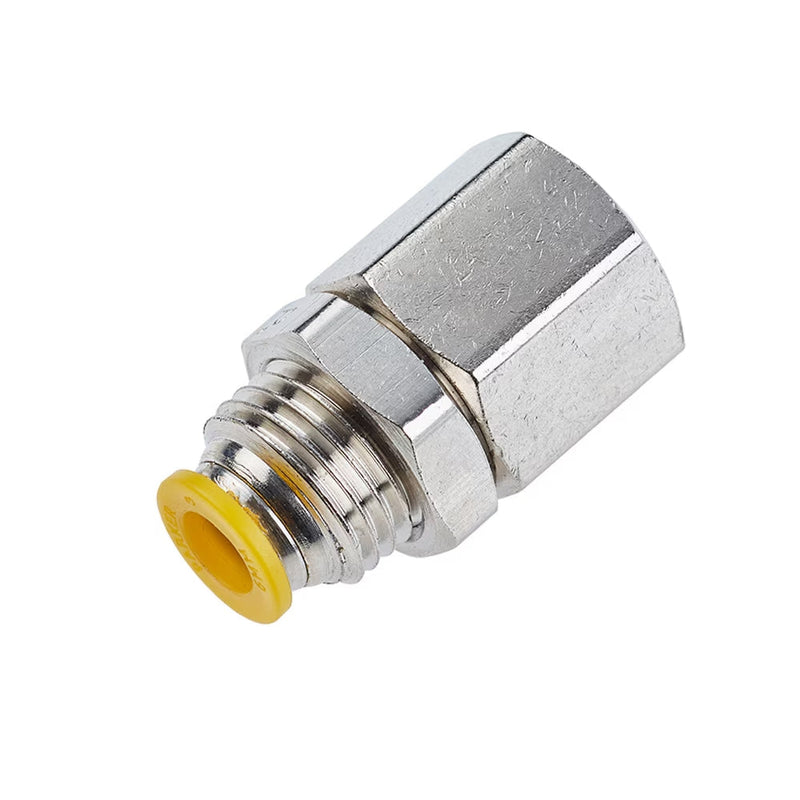

66PLPBH-10M-6G by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead | 10mm Bulkhead x 3/8" Female BSPP Thread | 1" Hex | 39.50mm Length | 7.925mm Flow Dia. | 22mm Bulkhead Hole Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $71.99

$179.97

$179.97 - $179.97

$179.97

$107.98

$107.98 - $107.98

$107.98

by Parker Hannifin
Push-to-Connect Fittings:66PLPBH Female Bulkhead – BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 66PLPBH-10M-6G Parker \| 10 \|
Series:	66PLPBH Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	Thread BSPP	Hex (C)	Max. (P)	Length (L)	Flow Diameter (D)	Bulkhead Hole Diameter
66PLPBH-4M-4G	4 mm	1/4"	11/16"	3.81 mm	37.85 mm	3.175 mm	12 mm
66PLPBH-6M-4G	6 mm	1/4"	11/16"	3.91 mm	36.40 mm	4.775 mm	14 mm
66PLPBH-10M-6G	10 mm	3/8"	1"	4.93 mm	39.50 mm	7.925 mm	22 mm
66PLPBH-12M-6G	12 mm	3/8"	1"	7.62 mm	41.61 mm	9.525 mm	22 mm
