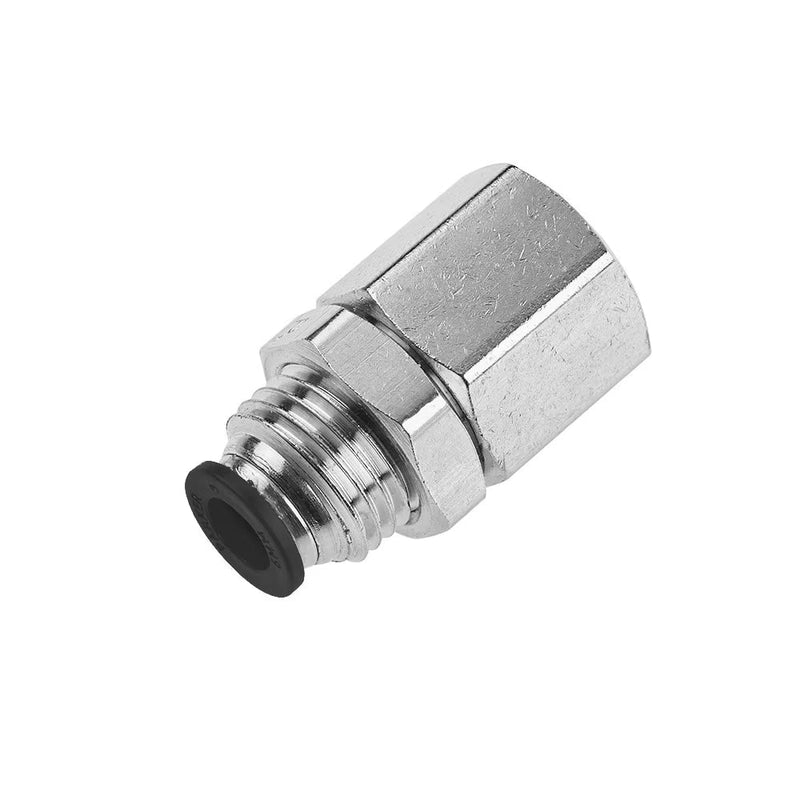

66PLPBH-4-4 by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead | 1/4" Bulkhead Tube Size x 1/4" Female NPTF Thread | 11/16" Hex | Straight | Nickel-Plated Brass | Pack of 10

66PLPBH-4-4 by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead | 1/4" Bulkhead Tube Size x 1/4" Female NPTF Thread | 11/16" Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $63.51 Save $63.51
$158.78
$158.78 - $158.78
$158.78
$95.27
$95.27 - $95.27
$95.27

by Parker Hannifin
Push-to-Connect Fittings:66PLPBH Female Bulkhead – NPTF

Package Quantity: 10 Units

Specifications for Variant SKU: 66PLPBH-4-4 Parker | 10 |
Series: 66PLPBH Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
66PLPBH_NPTF_Series_Table_Photo
Part Number Tube Size Pipe Thread (NPTF) Hex (C) Max (P) L Flow Diameter (D) Bulkhead Hole Diameter
66PLPBH-5/32-4 5/32" 1/4" 11/16" .19" 1.39" .125" 1/2"
66PLPBH-4-4 1/4" 1/4" 11/16" .24" 1.35" .188" 9/16"
66PLPBH-6-6 3/8" 3/8" 1" .22" 1.47" .312" 7/8"
66PLPBH-8-6 1/2" 3/8" 1" .35" 1.56" .344" 7/8"
t
