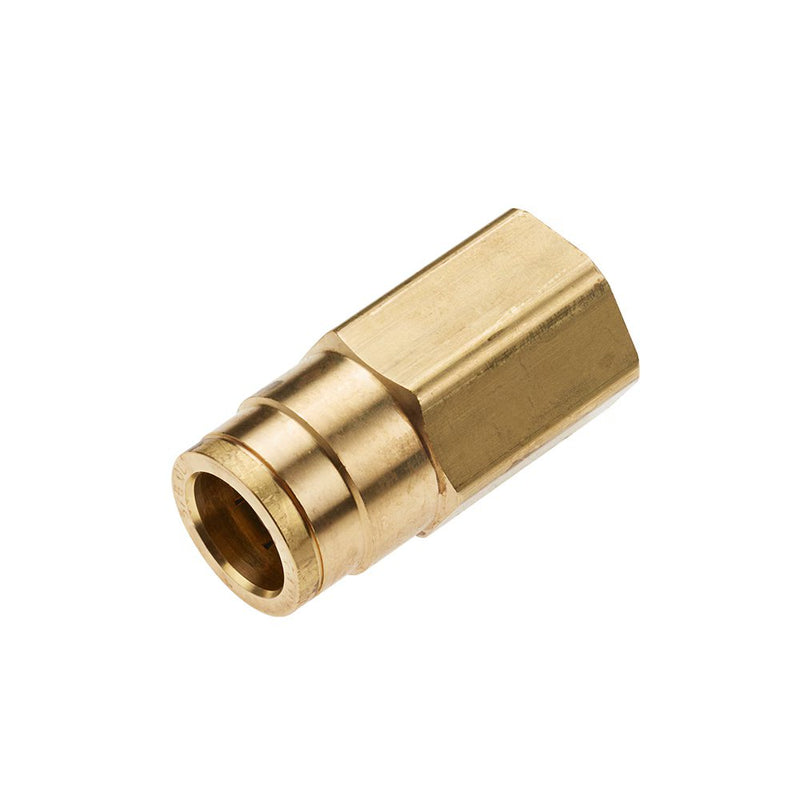

66PTC-6-2 by Parker | Threaded Fitting | 3/8" Push-to-Connect Connector x 1/8" Female NPT Thread | 3/4" Hex | 1.38" Length | Straight | Brass | Pack of 5

66PTC-6-2 by Parker | Threaded Fitting | 3/8" Push-to-Connect Connector x 1/8" Female NPT Thread | 3/4" Hex | 1.38" Length | Straight | Brass | Pack of 5

Save $50.89 Save $50.89
$127.22
$127.22 - $127.22
$127.22
$76.33
$76.33 - $76.33
$76.33

by Parker Hannifin
PTC Brass Fittings:Female Connector 66PTC

Package Quantity: 5 Units

Specifications for Variant SKU: 66PTC-6-2 Parker | 5 |
Series: 66PTC Series
Shape (Orientation): Straight
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L Hex
66PTC-5/32-2* 5/32" 1/8" 1.16" 9/16"
66PTC-5/32-4* 5/32" 1/4" 1.33" 11/16"
66PTC-3-2* 3/16" 1/8" 1.17" 9/16"
66PTC-4-2 1/4" 1/8" 1.17" 9/16"
66PTC-4-4 1/4" 1/4" 1.37" 11/16"
66PTC-6-2 3/8" 1/8" 1.38" 3/4"
66PTC-6-4 3/8" 1/4" 1.59" 3/4"
66PTC-6-6 3/8" 3/8" 1.59" 3/4"
66PTC-8-4 1/2" 1/4" 1.61" 7/8"
66PTC-8-6 1/2" 3/8" 1.87" 15/16"
66PTC-8-8 1/2" 1/2" 1.87" 15/16"
66PTC-10-8 5/8" 1/2" 2.02" 1"

*5/32 and 3/16 with black button
