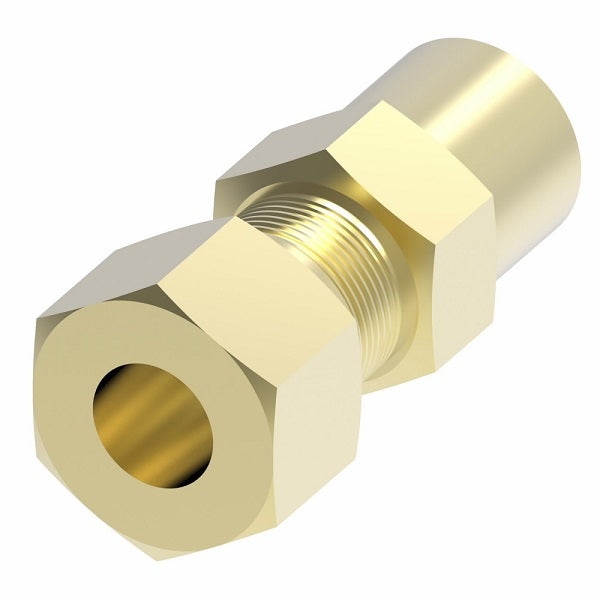

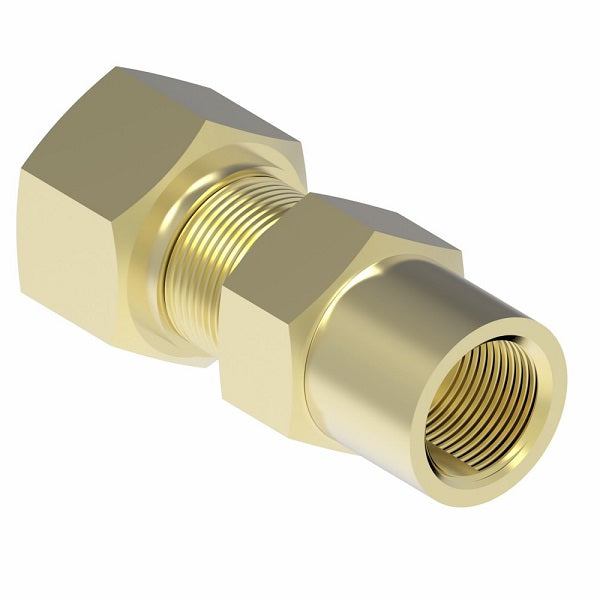

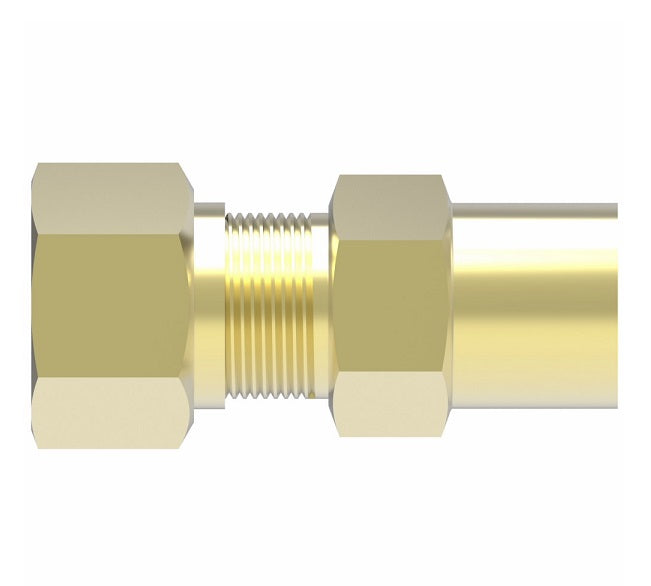

66X6 by Danfoss | Compression Fitting | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass
66X6 by Danfoss | Compression Fitting | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass
66X6 by Danfoss | Compression Fitting | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass
66X6 by Danfoss | Compression Fitting | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass

66X6 by Danfoss | Compression Fitting | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass

$7.26 - $7.26
$7.26
$7.26 - $7.26
$7.26

Aeroquip® by Danfoss
Compression Fitting - Female Connector
Compression End x Female NPTF
Straight
Specifications for Variant SKU: 66X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 1/4in Female NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060103BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
Body Only
Part Number 		Tube O.D. Female Pipe Thread Hex
C		 D L
66X2 B66X2 1/8" 1/8" 9/16" 0.094" 0.75"
66X3 B66X3 3/16" 1/8" 9/16" 0.125" 0.78"
66X4 B66X4 1/4" 1/8" 9/16" 0.188" 0.78"
66X4X4 B66X4X4 1/4" 1/4" 11/16" 0.188" 1.03"
66X5 B66X5 5/16" 1/8" 9/16" 0.250" 0.81"
66X6X2 B66X6X2 3/8" 1/8" 9/16" 0.312" 0.84"
66X6 B66X6 3/8" 1/4" 11/16" 0.312" 1.06"
66X8 - 1/2" 3/8" 13/16" 0.406" 1.12"
