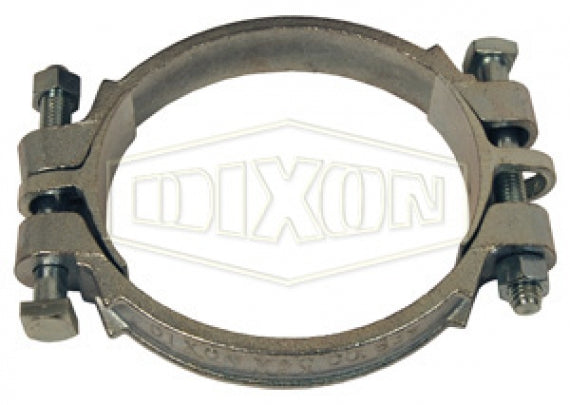

675 by Dixon Valve | Double Bolt Clamp | Hose OD Range: from 5-60/64" to 6-32/64" | with Saddles | Plated Iron

675 by Dixon Valve | Double Bolt Clamp | Hose OD Range: from 5-60/64" to 6-32/64" | with Saddles | Plated Iron

Save $1.24 Save $1.24
$30.96
$30.96 - $30.96
$30.96
$29.72
$29.72 - $29.72
$29.72

Dixon Valve
Double Bolt Clamps with Saddles
Specifications for Variant SKU: 675 Dixon
Material(s): Plated Iron
Minimum Clamp I.D.: 5.9375
Maximum Clamp I.D.: 6.5
Features:
  • Inner surface has dual gripping ridges.
  • Bolt lugs are reinforced to prevent bending out of alignment.
Note:
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
  • Measure hose O.D. accurately before ordering clamps.
  • Consult Dixon® when using double bolt clamps on helical wire hose.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
400 3-32/64" 3-52/64" 40
431 3-50/64" 4-4/64" 40
463 4-2/64" 4-18/64" 40
525 4-16/64" 4-60/64" 60
550 4-32/64" 5-16/64" 60
600 5-8/64" 5-44/64" 60
639 5-44/64" 5-60/64" 60
675 5-60/64" 6-32/64" 60
769 6-32/64" 7-36/64" 60
818 7-44/64" 8-12/64" 125
875 8-16/64" 8-56/64" 125
988 8-60/64" 9-56/64" 125
1125 9-60/64" 11-24/64" 125
1275 11-12/64" 13" 125
1360 12-12/64" 14" 200
1450 13-12/64" 15" 200
1700 15-4/64" 17-32/64" 260
