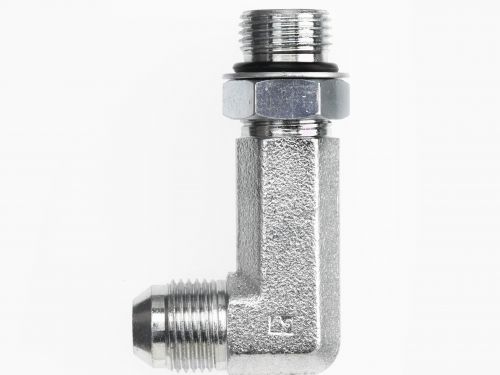

6801-LL-10-10-NWO-FG by Brennan Inc. | -10 Male JIC x -10 Male Adjustable O-Ring Boss | 90° Elbow | X-Long | Forged Steel

6801-LL-10-10-NWO-FG by Brennan Inc. | -10 Male JIC x -10 Male Adjustable O-Ring Boss | 90° Elbow | X-Long | Forged Steel

$13.37 - $13.37
$13.37
$16.96
$16.96 - $16.96
$16.96

Brennan Inc.
Tube Fittings & Adapters: 6801-LL-NWO - Male JIC x Male Adjustable O-Ring Boss 90° Elbow (X-Long)
Specifications for Variant SKU: 6801-LL-10-10-NWO-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male JIC, 5/8in Male O-Ring Boss
Material(s): Steel
Special Properties: Long Drop
Part Number Material Tube O.D. B1 SAE37° B2 SAE37° B1 Drill B2 Drill M Length M7 Length C Hex Y Flats
6801-LL-04-04-NWO-FG Forged Steel 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 0.890" 1.730" 0.563" 0.438"
6801-LL-04-06-NWO-FG Forged Steel 1/4" 7/16-20" 9/16-18" 0.172" 0.297" 1.050" 2.080" 0.688" 0.562"
6801-LL-06-06-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 1.06" 2.08" 0.688" 0.562"
6801-LL-06-08-NWO-FG Forged Steel 3/8" 9/16-18" 3/4-16" 0.297" 0.391" 1.14" 2.48" 0.875" 0.750"
6801-LL-08-06-NWO-FG Forged Steel 1/2" 3/4-16" 9/16-18" 0.391" 0.297" 1.25" 2.350" 0.688" 0.750"
6801-LL-08-08-NWO-FG Forged Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.25" 2.480" 0.875" 0.750"
6801-LL-08-10-NWO-FG Forged Steel 1/2" 3/4-16" 7/8-14" 0.391" 0.484" 1.33" 2.89" 1.000" 0.875"
6801-LL-10-08-NWO-FG Forged Steel 5/8" 7/8-14" 3/4-16" 0.484" 0.391" 1.450" 2.73" 0.875" 0.875"
6801-LL-10-10-NWO-FG Forged Steel 5/8" 7/8-14" 7/8-14" 0.484" 0.484" 1.450" 2.890" 1.000" 0.875"
6801-LL-12-12-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.660" 3.340" 1.250" 1.062"
6801-LL-12-16-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-5/16-12" 0.609" 0.844" 1.760" 3.720" 1.500" 1.312"
6801-LL-16-12-NWO-FG Forged Steel 1" 1-5/16-12" 1-1/16-12" 0.844" 0.609" 1.810" 3.720" 1.250" 1.312"
6801-LL-16-16-NWO-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 1.810" 3.720" 1.500" 1.312"
6801-LL-20-20-NWO-FG Forged Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 2.06" 4.410" 1.875" 1.625"

6801-LL-08-08-NWO-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.25" 2.480" 0.875" 0.750"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
