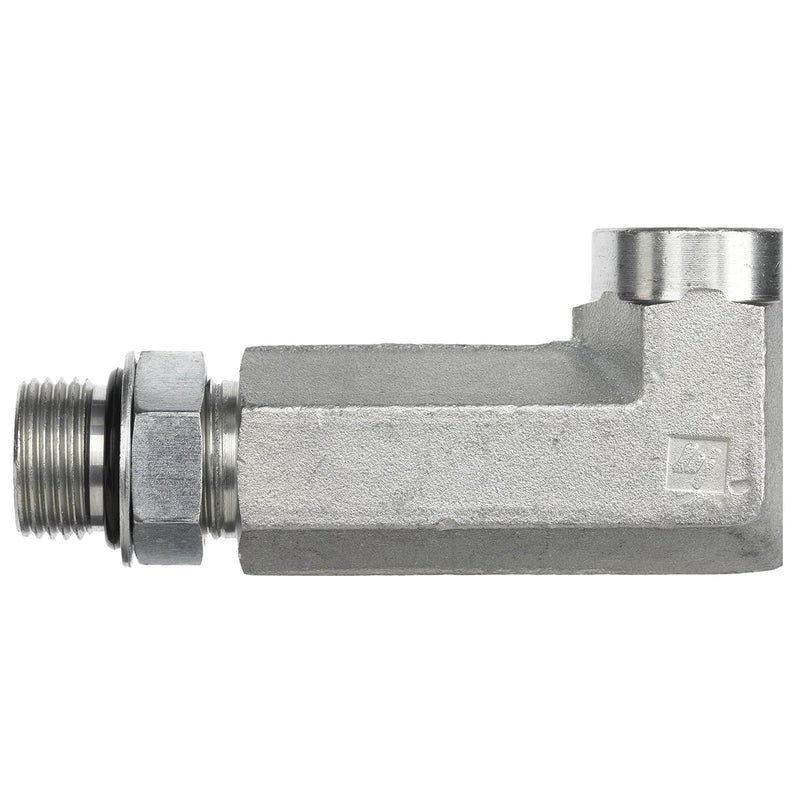

6805-L-16-16-NWO-FG by Brennan Inc. | -16 Male Adjustable O-Ring Boss x -16 Female Pipe | 90° Elbow | Long | Forged Steel

6805-L-16-16-NWO-FG by Brennan Inc. | -16 Male Adjustable O-Ring Boss x -16 Female Pipe | 90° Elbow | Long | Forged Steel

Save $38.37 Save $38.37
$95.92
$95.92 - $95.92
$95.92
$57.55
$57.55 - $57.55
$57.55

Brennan Inc.
Tube Fittings & Adapters: 6805-L-NWO - Male Adjustable O-Ring Boss x Female Pipe 90° Elbow (Long)
Specifications for Variant SKU: 6805-L-16-16-NWO-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male O-Ring Boss, 1in Female NPTF
Material(s): Steel
Special Properties: Long
Part Number Material Tube O.D. B SAE ORB A NPTF B Drill M7 Length N Length C Hex Y Flats
6805-L-08-06-NWO-FG Forged Steel 1/2" 3/4-16" 3/8-18" 0.391" 2.930" 1.020" 0.875" 0.875"
6805-L-10-08-NWO-FG Forged Steel 5/8" 7/8-14" 1/2-14" 0.484" 3.530" 1.230" 1.000" 1.062"
6805-L-12-12-NWO-FG Forged Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 4.050" 1.360" 1.250" 1.312"
6805-L-16-16-NWO-FG Forged Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 4.620" 1.620" 1.500" 1.625"

6805-L-10-08-NWO-SS Stainless Steel 5/8" 7/8-14" 1/2-14" 0.484" 3.530" 1.230" 1.000" 1.062"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
