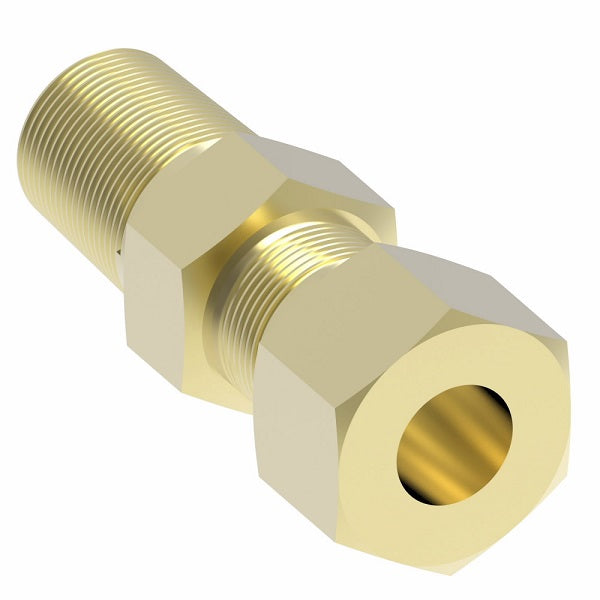

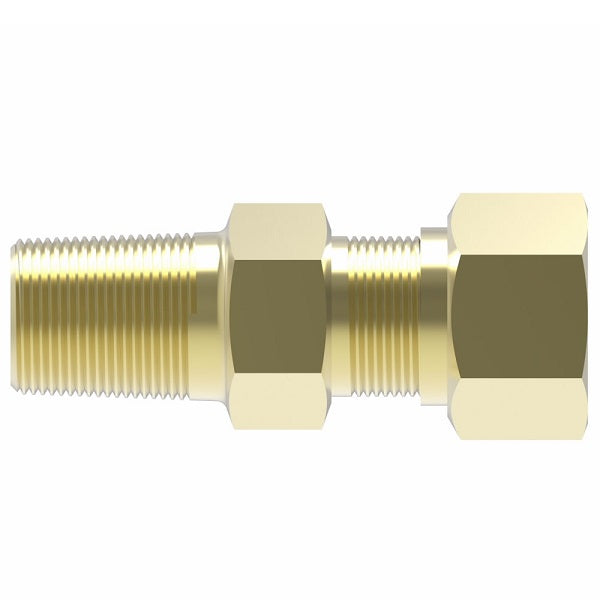

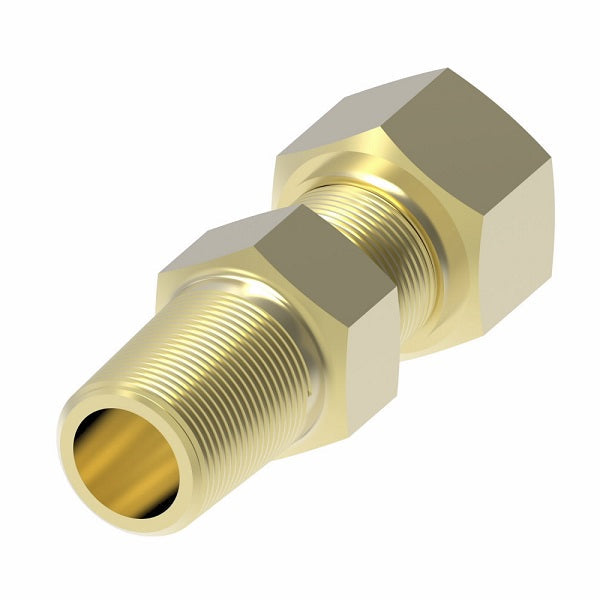

681X6X8 by Danfoss | SelfAlign Adapter | Male Connector | 3/8" Tube OD x 1/2" Male NPTF | Brass

681X6X8 by Danfoss | SelfAlign Adapter | Male Connector | 3/8" Tube OD x 1/2" Male NPTF | Brass

$5.74 - $5.74
$5.74
$5.74 - $5.74
$5.74

Aeroquip® by Danfoss
SelfAlign Adapter - Male Connector
SelfAlign End x Male NPTF
Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 681X6X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 1/2in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D L
681X2X1 1/8" 1/16" 3/8" 0.094" 0.78"
681X2 1/8" 1/8" 7/16" 0.094" 0.78"
681X3 3/16" 1/8" 7/16" 0.125" 0.84"
681X4 1/4" 1/8" 7/16" 0.188" 0.88"
681X4X4 1/4" 1/4" 9/16" 0.188" 1.06"
681X5 5/16" 1/8" 1/2" 0.234" 0.91"
681X5X4 5/16" 1/4" 9/16" 0.250" 1.09"
681X6X2 3/8" 1/8" 9/16" 0.250" 0.97"
681X6 3/8" 1/4" 9/16" 0.312" 1.17"
681X6X6 3/8" 3/8" 11/16" 0.312" 1.16"
681X6X8 3/8" 1/2" 7/8" 0.312" 1.34"
681X8X4 1/2" 1/4" 11/16" 0.281" 1.22"
681X8 1/2" 3/8" 11/16" 0.406" 1.22"
681X8X8 1/2" 1/2" 7/8" 0.406" 1.41"
681X10 5/8" 1/2" 7/8" 0.500" 1.50"
