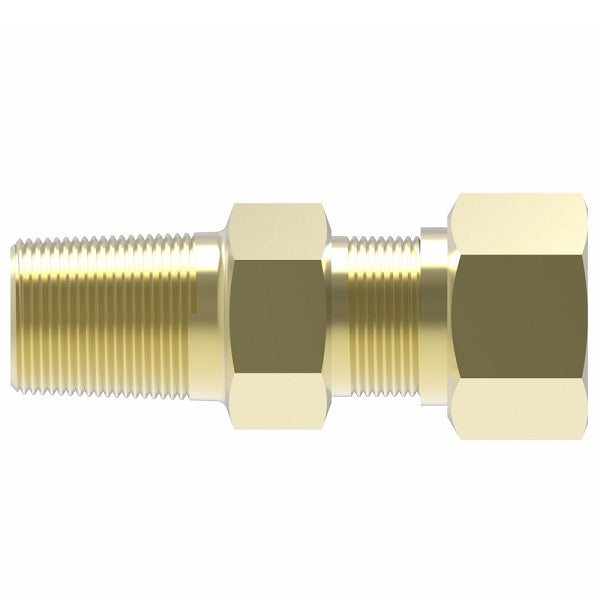

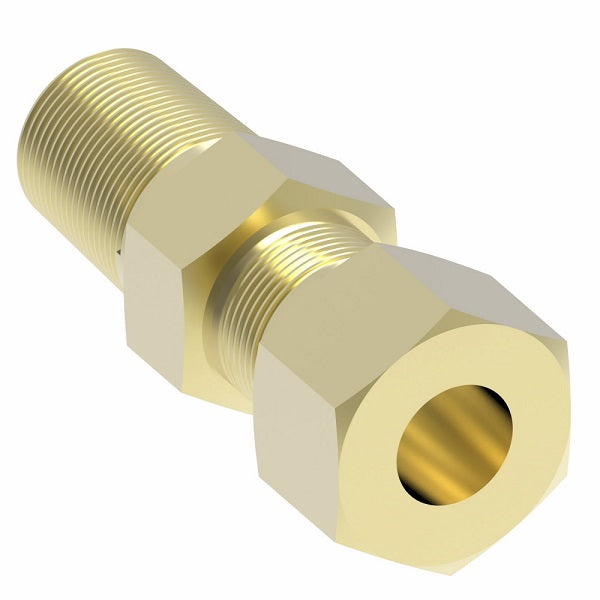

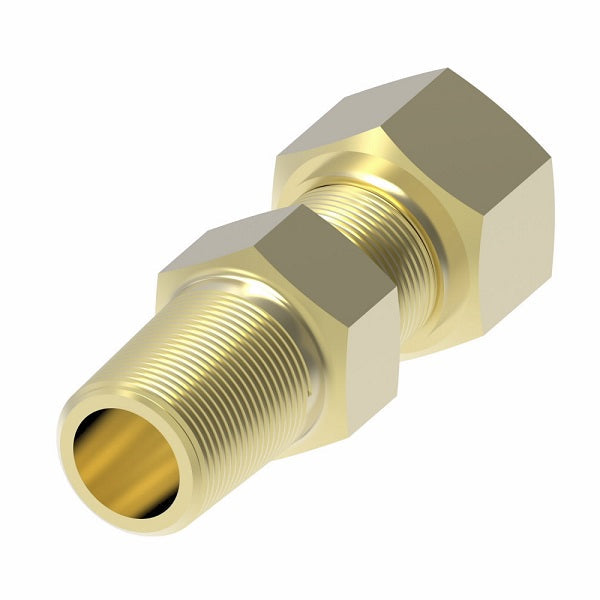

681X8X8 by Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD x 1/2" Male NPTF | Brass
681X8X8 by Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD x 1/2" Male NPTF | Brass
681X8X8 by Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD x 1/2" Male NPTF | Brass
681X8X8 by Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD x 1/2" Male NPTF | Brass

681X8X8 by Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD x 1/2" Male NPTF | Brass

$10.02 - $10.02
$10.02
$10.02 - $10.02
$10.02

Aeroquip® by Danfoss
SelfAlign Adapter - Male Connector
SelfAlign End x Male NPTF
Straight
Specifications for Variant SKU: 681X8X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression, 1/2in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D L
681X2X1 1/8" 1/16" 3/8" 0.094" 0.78"
681X2 1/8" 1/8" 7/16" 0.094" 0.78"
681X3 3/16" 1/8" 7/16" 0.125" 0.84"
681X4 1/4" 1/8" 7/16" 0.188" 0.88"
681X4X4 1/4" 1/4" 9/16" 0.188" 1.06"
681X5 5/16" 1/8" 1/2" 0.234" 0.91"
681X5X4 5/16" 1/4" 9/16" 0.250" 1.09"
681X6X2 3/8" 1/8" 9/16" 0.250" 0.97"
681X6 3/8" 1/4" 9/16" 0.312" 1.17"
681X6X6 3/8" 3/8" 11/16" 0.312" 1.16"
681X6X8 3/8" 1/2" 7/8" 0.312" 1.34"
681X8X4 1/2" 1/4" 11/16" 0.281" 1.22"
681X8 1/2" 3/8" 11/16" 0.406" 1.22"
681X8X8 1/2" 1/2" 7/8" 0.406" 1.41"
681X10 5/8" 1/2" 7/8" 0.500" 1.50"
