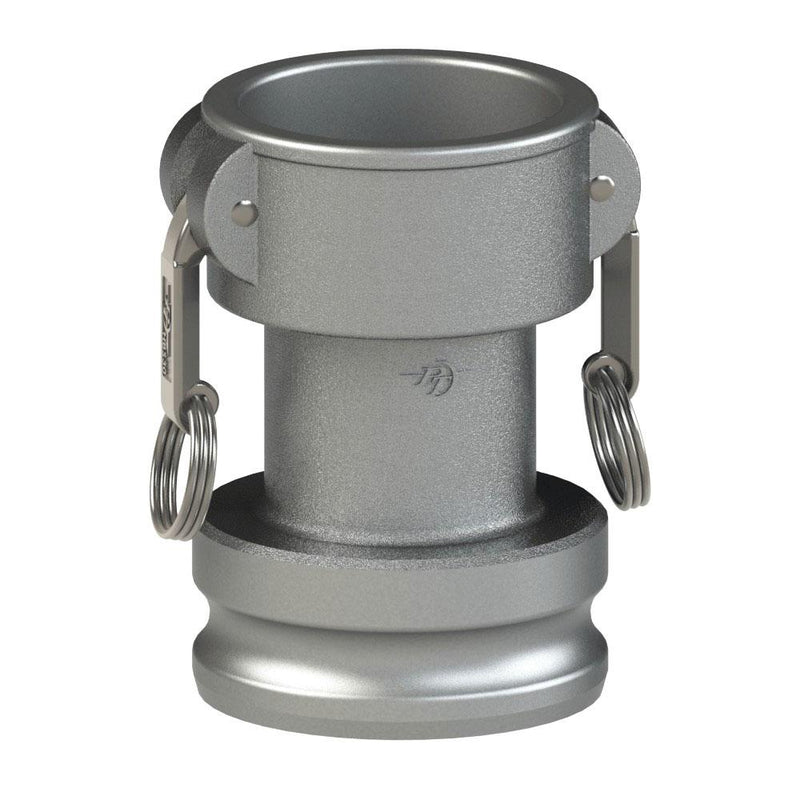

68265040 (50CX40A LONG) by PT-Coupling | Long Reducing Cam & Groove Adapter | Type CXA | 5" Coupler x 4" Adapter | Ductile Iron | Buna-N Seal

68265040 (50CX40A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 5" Coupler x 4" Adapter | Ductile Iron | Buna-N Seal

Save $94.04

$253.33

$253.33 - $253.33

$253.33

$159.29

$159.29 - $159.29

$159.29

PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Ductile Iron | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 68265040 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	5in Female Cam & Groove, 4in Male Cam & Groove
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA

Part Name	Item #	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
20CX30A LONG	68262030	2"	3"	200 PSI
30CX20A LONG	68263020	3"	2"	200 PSI
30CX40A LONG	68263040	3"	4"	150 PSI
40CX30A LONG	68264030	4"	3"	150 PSI
50CX40A LONG	68265040	5"	4"	75 PSI
60CX40A LONG	68266040	6"	4"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
