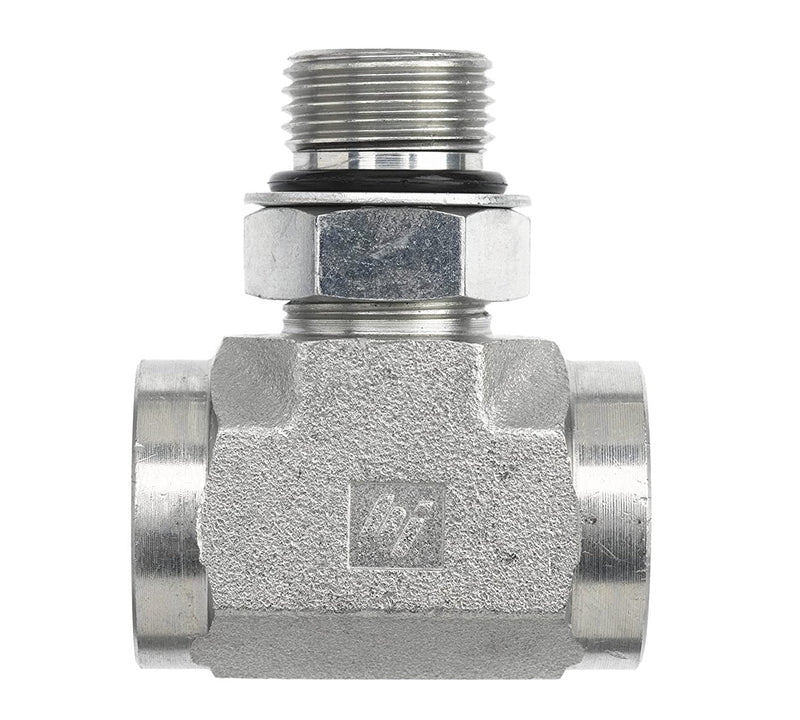

6832-12-12-12-NWO-FG by Brennan Inc. | -12 Female O-Ring Boss x -12 Female O-Ring Boss x -12 Male Adjustable O-Ring Boss | Tee | Forged Steel

6832-12-12-12-NWO-FG by Brennan Inc. | -12 Female O-Ring Boss x -12 Female O-Ring Boss x -12 Male Adjustable O-Ring Boss | Tee | Forged Steel

Save $18.87 Save $18.87
$47.18
$47.18 - $47.18
$47.18
$28.31
$28.31 - $28.31
$28.31

Brennan Inc.
Tube Fittings & Adapters: 6832-NWO - Female O-Ring Boss x Female O-Ring Boss x Male Adjustable O-Ring Boss Tee
Specifications for Variant SKU: 6832-12-12-12-NWO-FG Brennan
Shape (Orientation): Tee
Ends Configuration: 3/4in Female O-Ring Boss, 3/4in Female O-Ring Boss, 3/4in Male O-Ring Boss, Some Ends Match
Material(s): Steel
Part Number Material Tube O.D. B1
SAE
ORB		 B2
SAE
ORB		 B3
SAE
ORB		 B3
Drill		 M1
Length		 N2
Length		 M7
Length		 C
Hex		 Y
Flats
6832-04-04-04-NWO-FG Forged Steel 1/4" 7/16-20" 7/16-20" 7/16-20" 0.172" 0.630" 0.630" 1.230" 0.563" 0.750"
6832-06-06-06-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 9/16-18" 0.297" 0.750" 0.750" 1.380" 0.688" 0.875"
6832-08-06-08-NWO-FG Forged Steel - - - - - - - - - -
6832-08-08-08-NWO-FG Forged Steel 1/2" 3/4-16" 3/4-16" 3/4-16" 0.391" 0.880" 0.880" 1.590" 0.875" 1.062"
6832-10-10-10-NWO-FG Forged Steel 5/8" 7/8-14" 7/8-14" 7/8-14" 0.484" 1.020" 1.020" 1.810" 1.000" 1.062"
6832-12-12-12-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 1-1/16-12" 0.609" 1.210" 1.210" 2.000" 1.250" 1.312"
6832-16-16-16-NWO-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 1-5/16-12" 0.844" 1.330" 1.330" 2.250" 1.500" 1.625"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
