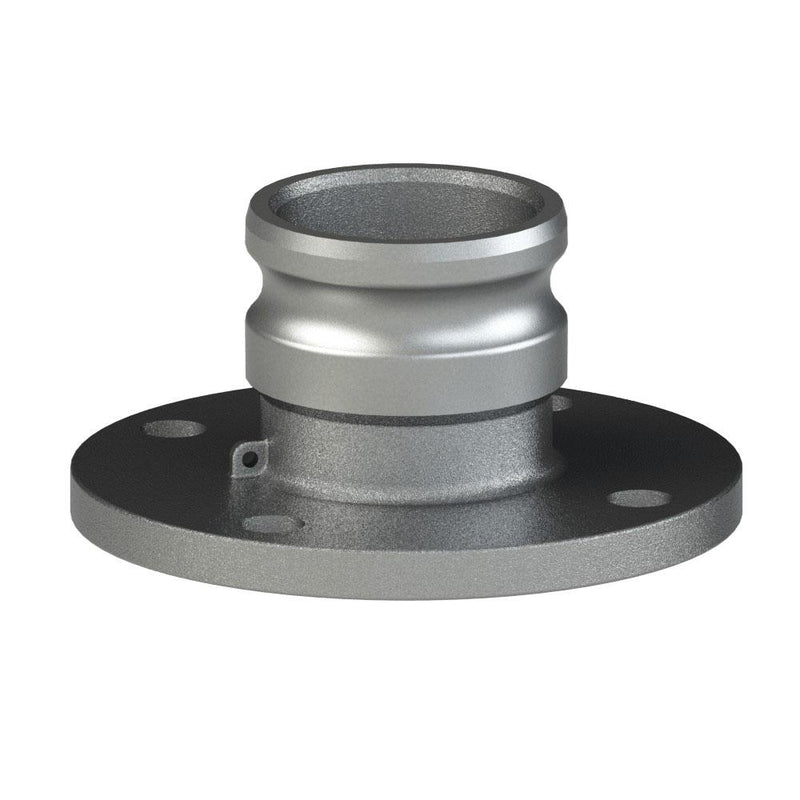

68523040 (PF30X40A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 3" Adapter x 4" 150# Pipe Flange | Ductile Iron

68523040 (PF30X40A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 3" Adapter x 4" 150# Pipe Flange | Ductile Iron

Save $441.19 Save $441.19
$1,188.55
$1,188.55 - $1,188.55
$1,188.55
$747.36
$747.36 - $747.36
$747.36

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 68523040 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Male Cam & Groove, 4in 150# Flange
Material(s): Ductile Iron
Features & Applications:
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*		 Weight
PF30A 68523000 3" 3" 3.69" 2.78" 7.50" 0.75" 4 6.00" 200 PSI 8.125 lbs.
PF30X40A 68523040 3" 4" 3.69" 2.78" 9.00" 0.75" 4 6.00" 150 PSI -
PF40A 68524000 4" 4" 4.00" 3.78" 9.00" 0.75" 8 7.50" 150 PSI 12.34 lbs.
PF50A 68525000 5" 5" 4.44" 4.79" 10.00" 0.88" 8 8.50" 75 PSI -
PF60A 68526000 6" 6" 4.50" 5.56" 11.00" 0.88" 8 9.50 75 PSI 23.34 lbs.
PF80A 68528000 8" 8" 5.38" 7.80" 13.5" 0.88" 8 11.75" 50 PSI 36.645 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
