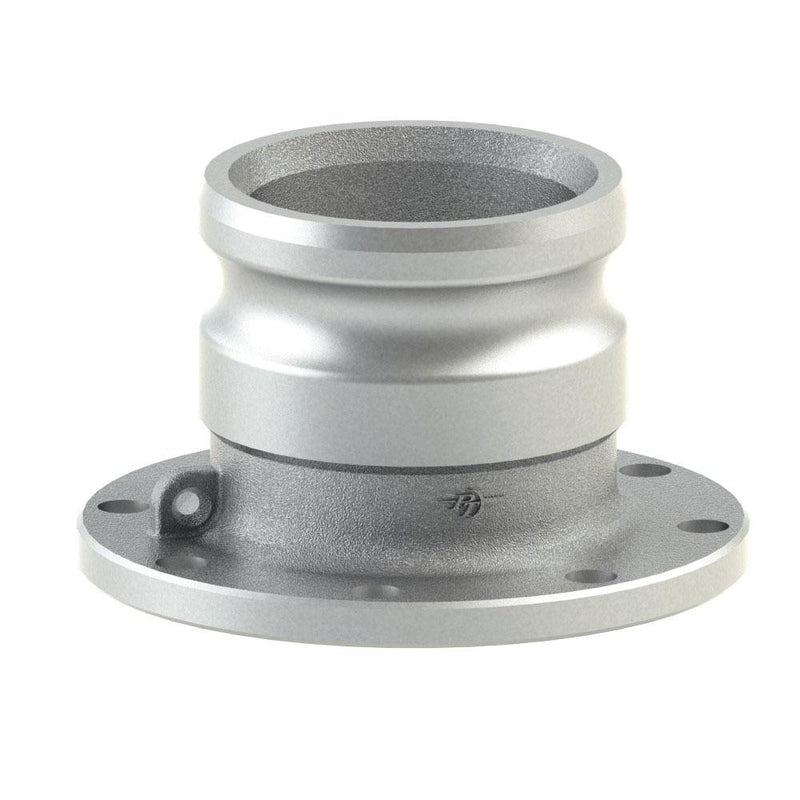

68563000 (TTF30A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 3" Adapter x 3" TTMA Flange | Ductile Iron

68563000 (TTF30A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 3" Adapter x 3" TTMA Flange | Ductile Iron

Save $66.06 Save $66.06
$177.95
$177.95 - $177.95
$177.95
$111.89
$111.89 - $111.89
$111.89

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFA | Adapter x TTMA Flange | Ductile Iron

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 68563000 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Male Cam & Groove, 3in TTMA Flange
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size
(TTMA)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
TTF30A 68563000 3" 3" 3.38" 2.80" 5.63" 0.44" 8 4.88" 200 PSI
TTF40A 68564000 4" 4" 3.35" 3.78" 6.63" 0.44" 8 5.88" 150 PSI

* Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
