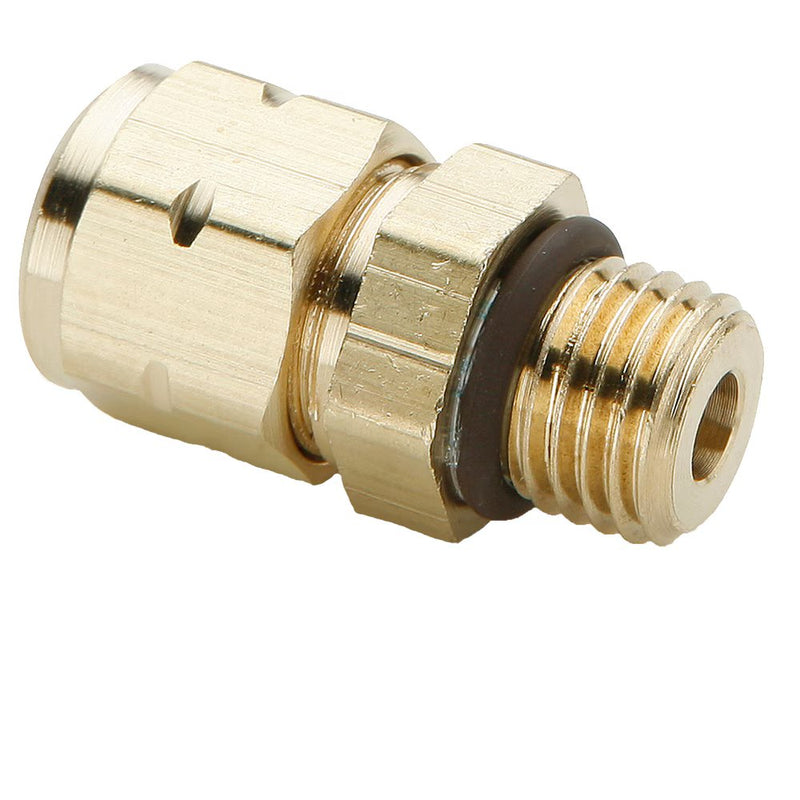

685VLV-10-10 by Parker | Vibra-Lok Fittings | 5/8" Tube Size Connector x 7/8" Male Thread | 1-1/16" Body Hex | 1.84" Length | Straight | Brass

Save $16.47

$41.18

$41.18 - $41.18

$41.18

$24.71

$24.71 - $24.71

$24.71

by Parker Hannifin
Vibra-Lok Fittings:Male Connector 685VLV

Specifications for Variant SKU: 685VLV-10-10 Parker
Brand:	Vibra-Lok
Series:	685VLV Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, Vibration Resistance

Specification:
Product Features:	Brass Body Sleeves in Buna N and Fluorocarbon NPTF and SAE J1926 Straight Threads are Standard Excellent Vibration Resistance
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Oil Fuel Coolant Lines on engines
Pressure Range:	Dependent on condition and tube size, refer to pressure chart

Temperature Range:	-15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:	Copper Aluminum Steel (Bundy) Stainless Steel Glass


Part Number	Tube Size	Straight Thread	Body Hex	L	M	N	D
685VLV-4-4	1/4"	7/16"-20	9/16"	1.14"	.83"	.36"	.18"
685VLV-5-4	5/16"	7/16"-20	5/8"	1.18"	.83"	.36"	.18"
685VLV-6-4	3/8"	7/16"-20	11/16"	1.18"	.83"	.36"	.18"
685VLV-6-6	3/8"	9/16"-18	11/16"	1.25"	.90"	.39"	.30"
685VLV-8-8	1/2"	3/4"-16	7/8"	1.52"	1.04"	.44"	.39"
685VLV-10-10	5/8"	7/8"-14	1-1/16"	1.84"	1.20"	.50"	.50"

Note: Fluorocarbon seal & o-ring standard
