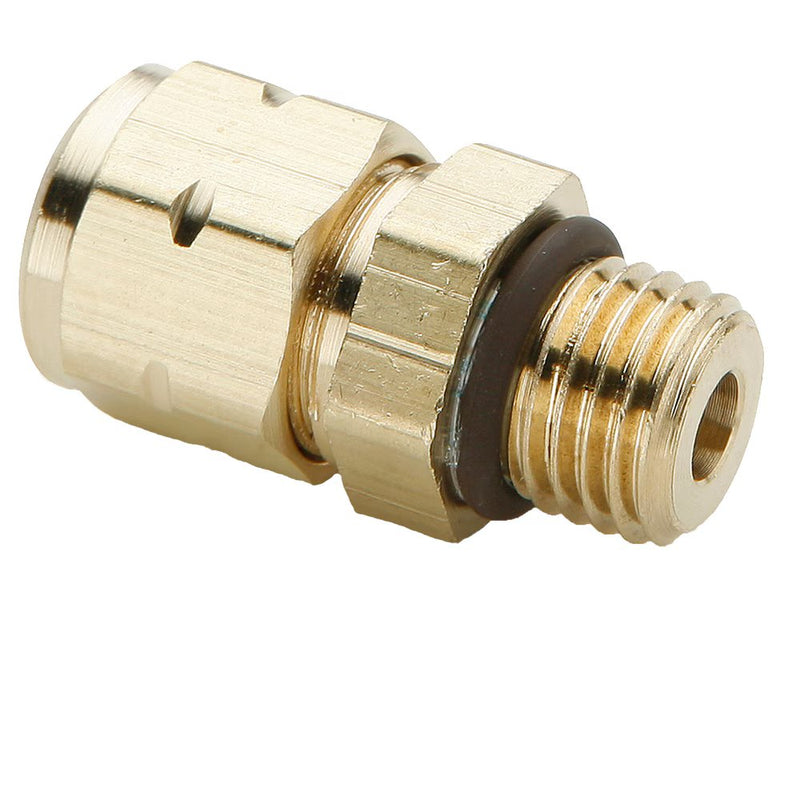

685VLV-8-8 by Parker | Vibra-Lok Fittings | 1/2" Tube Size Connector x 3/4" Male Thread | 7/8" Body Hex | 1.52" Length | Straight | Brass

685VLV-8-8 by Parker | Vibra-Lok Fittings | 1/2" Tube Size Connector x 3/4" Male Thread | 7/8" Body Hex | 1.52" Length | Straight | Brass

Save $6.70 Save $6.70
$18.21
$18.21 - $18.21
$18.21
$11.51
$11.51 - $11.51
$11.51

by Parker Hannifin
Vibra-Lok Fittings:Male Connector 685VLV
Specifications for Variant SKU: 685VLV-8-8 Parker
Brand: Vibra-Lok
Series: 685VLV Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, Vibration Resistance
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Straight Thread Body Hex L M N D
685VLV-4-4 1/4" 7/16"-20 9/16" 1.14" .83" .36" .18"
685VLV-5-4 5/16" 7/16"-20 5/8" 1.18" .83" .36" .18"
685VLV-6-4 3/8" 7/16"-20 11/16" 1.18" .83" .36" .18"
685VLV-6-6 3/8" 9/16"-18 11/16" 1.25" .90" .39" .30"
685VLV-8-8 1/2" 3/4"-16 7/8" 1.52" 1.04" .44" .39"
685VLV-10-10 5/8" 7/8"-14 1-1/16" 1.84" 1.20" .50" .50"

Note: Fluorocarbon seal & o-ring standard
