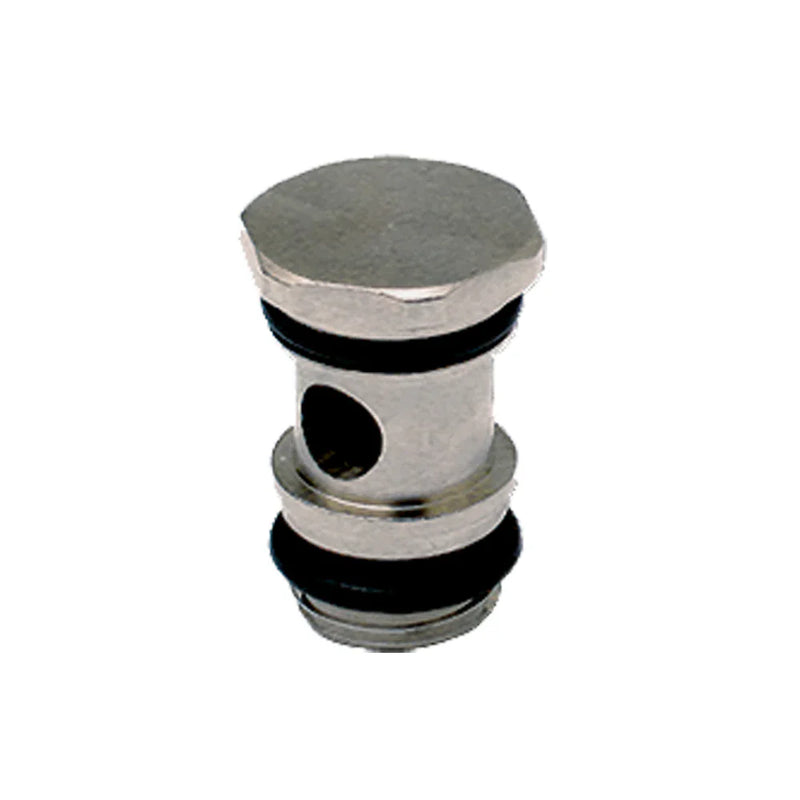

68BJB-2G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 1/8" Male BSPP Single Banjo Bolt | 13mm Hex | 17.0mm Height (H) | Brass | Pack of 10

68BJB-2G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 1/8" Male BSPP Single Banjo Bolt | 13mm Hex | 17.0mm Height (H) | Brass | Pack of 10

Save $30.97 Save $30.97
$77.43
$77.43 - $77.43
$77.43
$46.46
$46.46 - $46.46
$46.46

by Parker Hannifin
Push-to-Connect Fittings:68BJB Single Banjo Bolt

Package Quantity: 10 Units

Specifications for Variant SKU: 68BJB-2G Parker | 10 |
Series: 68BJB Series
Shape (Orientation): Banjo
Material(s): Brass
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number BSPP / M5 Hex (C) H H1
68BJB-M5* M5X0.8 - 17.0 mm 7.5 mm
68BJB-2G 1/8" 13 mm 17.0 mm 7.5 mm
68BJB-4G 1/4" 17 mm 21.0 mm 9.5 mm
68BJB-6G 3/8" 20 mm 24.5 mm 11.0 mm

*With screwdriver slot
