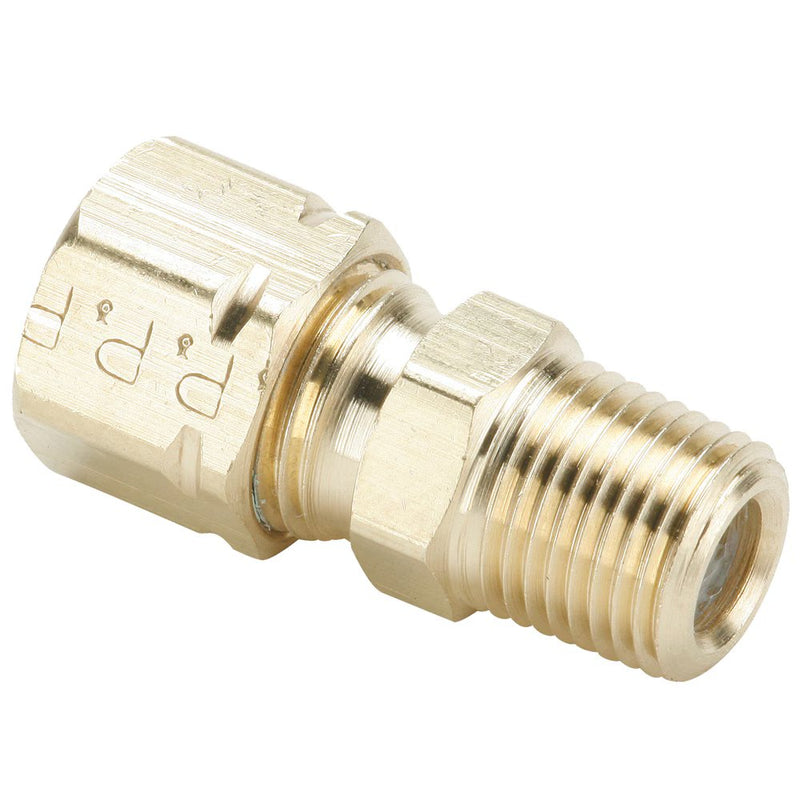

68CA-10-12 by Parker | Compress-Align® Fittings | 5/8" Tube Size Connector x 3/4" Male Pipe Thread x 13/16" Thread | 1-1/16" Hex | 1.80" Length | Straight | Brass | Pack of 10

68CA-10-12 by Parker | Compress-Align® Fittings | 5/8" Tube Size Connector x 3/4" Male Pipe Thread x 13/16" Thread | 1-1/16" Hex | 1.80" Length | Straight | Brass | Pack of 10

Save $121.21 Save $121.21
$303.02
$303.02 - $303.02
$303.02
$181.81
$181.81 - $181.81
$181.81

by Parker Hannifin
Compress-Align® Fittings:Male Connector 68CA

Package Quantity: 10 Units

Specifications for Variant SKU: 68CA-10-12 Parker | 10 |
Brand: Compress-Align
Series: 68CA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
68CA-2-1 1/8" 1/16" 5/16"-24 3/8" 1.02" .78" .095"
68CA-2-2 1/8" 1/8" 5/16"-24 7/16" 1.01" .77" .094"
68CA-3-1 3/16" 1/16" 3/8"-24 3/8" 1.07" .84" .125"
68CA-3-2 3/8" 1/8" 3/8"-24 7/16" 1.07" .84" .125"
68CA-3-4 3/16" 1/4" 3/8"-24 9/16" 1.26" 1.03" .125"
68CA-4-2 1/4" 1/8" 7/16"-24 7/16" 1.10" .86" .188"
68CA-4-4 1/4" 1/4" 7/16"-24 7/16" 1.31" 1.06" .188"
68CA-4-6 1/4" 3/8" 7/16"-24 11/16" 1.28" 1.03" .188"
68CA-4-8 1/4" 1/2" 7/16"-24 7/8" 1.56" 1.31" .188"
68CA-5-2 5/16" 1/8" 1/2"-24 1/2" 1.13" .89" .234"
68CA-5-4 5/16" 1/4" 1/2"-24 9/16" 1.35" 1.07" .250"
68CA-6-2 3/8" 1/8" 9/16"-24 9/16" 1.19" .97" .250"
68CA-6-4 3/8" 1/4" 9/16"-24 9/16" 1.36" 1.14" .312"
68CA-6-6 3/8" 3/8" 9/16"-24 11/16" 1.43" 1.16" .312"
68CA-6-8 3/8" 1/2" 9/16"-24 7/8" 1.52" 1.25" .312"
68CA-8-4 1/2" 1/4" 11/16"-20 11/16" 1.45" 1.22" .312"
68CA-8-6 1/2" 3/8" 11/16"-20 11/16" 1.43" 1.20" .406"
68CA-8-8 1/2" 1/2" 11/16"-20 7/8" 1.54" 1.31" .406"
68CA-10-6 5/8" 3/8" 13/16"-18 13/16" 1.55" 1.31" .406"
68CA-10-8 5/8" 1/2" 13/16"-18 7/8" 1.72" 1.48" .500"
68CA-10-12 5/8" 3/4" 13/16"-18 1-1/16" 1.80" 1.56" .500"
68CA-12-8 3/4" 1/2" 1"-18 1" 1.99" 1.60" .562"
68CA-12-12 3/4" 3/4" 1"-18 1-1/16" 2.02" 1.633" .656"
68CA-14-12 7/8" 3/4" 1-1/8"-18 1-1/8" 1.85" 1.41" .750"
68CA-16-12 1" 3/4" 1-1/4"-18 1-1/4" 1.83" 1.39" .750"
68CA-16-16 1" 1" 1-1/4"-18 1-3/8" 2.02" 1.58" .875"
