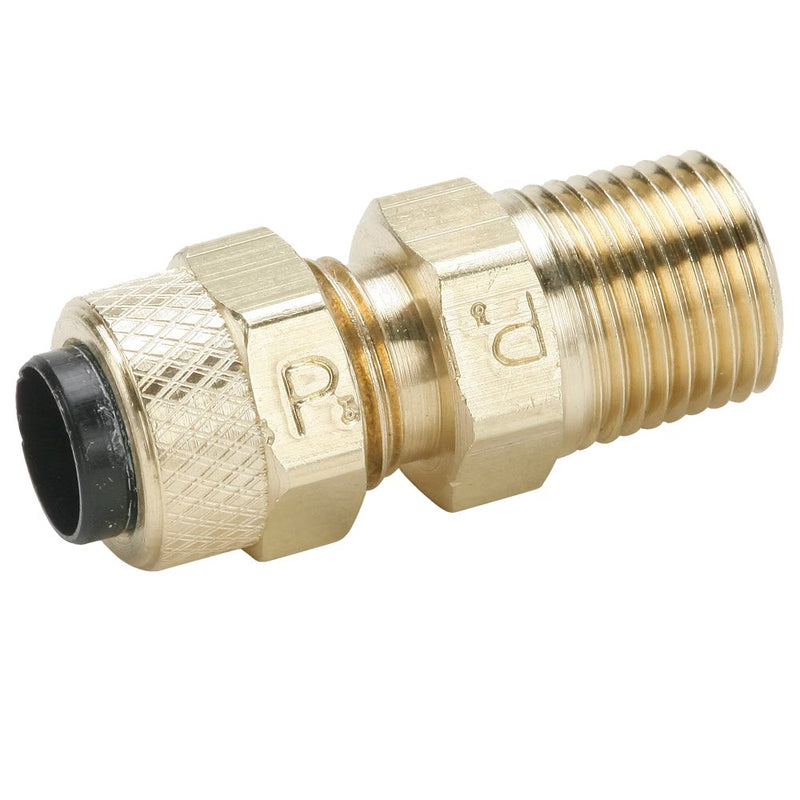

68P-6-2 by Parker | Poly-Tite Fittings | 3/8" Tube Size Connector x 1/8" Male Pipe Thread x 1/2" Thread | 1/2" Hex | 1.10" Length | Straight | Brass | Pack of 10

68P-6-2 by Parker | Poly-Tite Fittings | 3/8" Tube Size Connector x 1/8" Male Pipe Thread x 1/2" Thread | 1/2" Hex | 1.10" Length | Straight | Brass | Pack of 10

Save $27.40 Save $27.40
$68.50
$68.50 - $68.50
$68.50
$41.10
$41.10 - $41.10
$41.10

by Parker Hannifin
Poly-Tite Fittings:Male Connector 68P

Package Quantity: 10 Units

Specifications for Variant SKU: 68P-6-2 Parker | 10 |
Series: 68P Series
Shape (Orientation): Straight
Material(s): Brass, Acetal Copolymer
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
68P-4-1 1/4" 1/16" 3/8"-24 3/8" 1.06" .95" .125"
68P-4-10X32 1/4" 10-32" 3/8"-24 3/8" .86" .75" .094"
68P-4-2 1/4" 1/8" 3/8"-24 7/16" 1.06" .95" .125"
68P-4-4 1/4" 1/4" 3/8"-24 9/16" 1.25" 1.14" .125"
68P-4-6 1/4" 3/8" 3/8"-24 11/16" 1.28" 1.17" .125"
68P-5-2 5/16" 1/8" 7/16"-24 7/16" 1.05" .95" .144"
68P-5-4 5/16" 1/4" 7/16"-24 9/16" 1.24" 1.14" .144"
68P-6-2 3/8" 1/8" 1/2"-24 1/2" 1.10" .98" .204"
68P-6-4 3/8" 1/4" 1/2"-24 9/16" 1.29" 1.17" .204"
68P-6-6 3/8" 3/8" 1/2"-24 11/16" 1.29" 1.17" .204"
68P-8-4 1/2" 1/4" 11/16"-20 11/16" 1.46" 1.29" .320"
68P-8-6 1/2" 3/8" 11/16"-20 11/16" 1.37" 1.29" .323"
