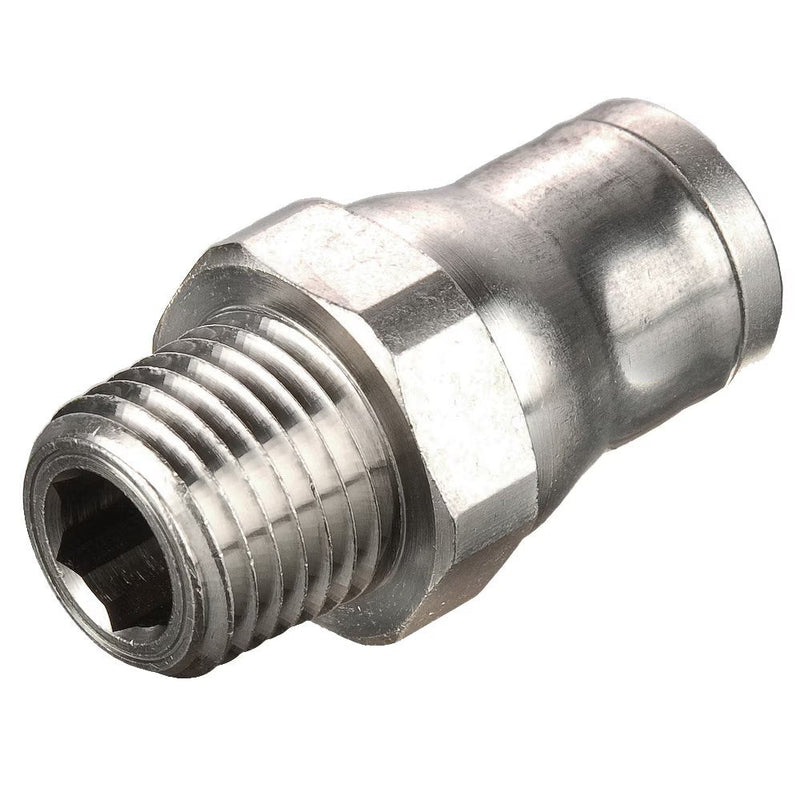

68PLM-6-8 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 3/8" Connector x 1/2" Male NPT Thread | .94" Height | Straight | Electroless Nickel-Plated Brass | Pack of 10

68PLM-6-8 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 3/8" Connector x 1/2" Male NPT Thread | .94" Height | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $70.30 Save $70.30
$175.75
$175.75 - $175.75
$175.75
$105.45
$105.45 - $105.45
$105.45

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:68PLM Male Connector Inch Tube to NPT/UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLM-6-8 Parker | 10 |
Series: 68PLM Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size NPT / UNF F1 F2 H K
68PLM-4M-0 5/32" 10-32" 10 mm 2.5 mm .61" .43"
68PLM-4M-2 5/32" 1/8" 11 mm 3.0 mm .59" .43"
68PLM-4M-4 5/32" 1/4" 14 mm 3.0 mm .59" .47"
68PLM-4-0 1/4" 10-32" 13 mm 2.5 mm .75" .55"
68PLM-4-2 1/4" 1/8" 13 mm 4.0 mm .67" .55"
68PLM-4-4 1/4" 1/4" 14 mm 4.0 mm .67" .59"
68PLM-4-6 1/4" 3/8" 18 mm 5.0 mm .67" .77"
68PLM-6-2 3/8" 1/8" 18 mm 4.0 mm .97" .77"
68PLM-6-4 3/8" 1/4" 18 mm 7.0 mm .95" .77"
68PLM-6-6 3/8" 3/8" 18 mm 8.0 mm .91" .77"
68PLM-6-8 3/8" 1/2" 22 mm 8.0 mm .95" .94"
68PLM-8-6 1/2" 3/8" 22 mm 9.0 mm .95" .94"
68PLM-8-8 1/2" 1/2" 22 mm 10.0 mm .95" .94"
