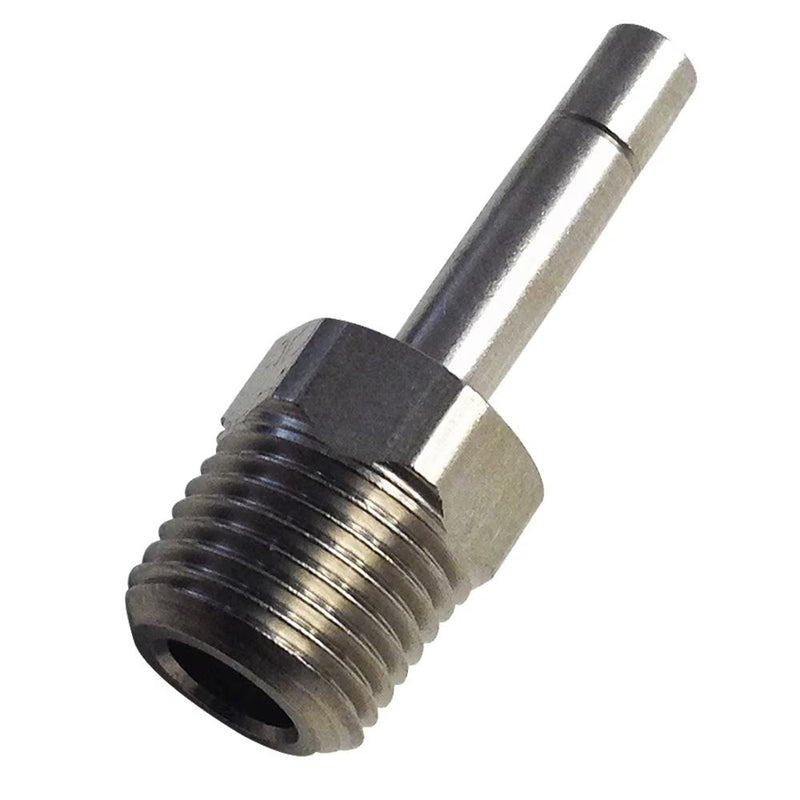

68PLMSP-12M-8R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 12 mm Standpipe x 1/2" Male BSPT Threads | 24.00 mm Height | Straight | Electroless Nickel-Plated Brass | Pack of 5

Save $59.02

$147.55

$147.55 - $147.55

$147.55

$88.53

$88.53 - $88.53

$88.53

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:68PLMSP Male Stud Standpipe Metric Tube to BSPT

Package Quantity: 5 Units

Specifications for Variant SKU: 68PLMSP-12M-8R Parker \| 5 \|
Series:	68PLMSP Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size	BSPT	F	H	H1	K
68PLMSP-4M-2R	4 mm	1/8"	10 mm	21.00	7.00	11.00
68PLMSP-6M-2R	6 mm	1/8"	10 mm	23.50	6.50	11.00
68PLMSP-6M-4R	6 mm	1/4"	10 mm	23.50	6.50	15.00
68PLMSP-8M-2R	8 mm	1/8"	10 mm	24.00	6.50	11.00
68PLMSP-8M-4R	8 mm	1/4"	14 mm	24.00	6.50	15.00
68PLMSP-10M-4R	10 mm	1/4"	14 mm	22.00	6.50	15.00
68PLMSP-10M-6R	10 mm	3/8"	17 mm	30.00	7.50	18.50
68PLMSP-12M-6R	12 mm	3/8"	17 mm	31.00	7.50	18.50
68PLMSP-12M-8R	12 mm	1/2"	22 mm	38.00	7.50	24.00
68PLMSP-14M-8R	14 mm	1/2"	22 mm	33.00	8.00	24.00
