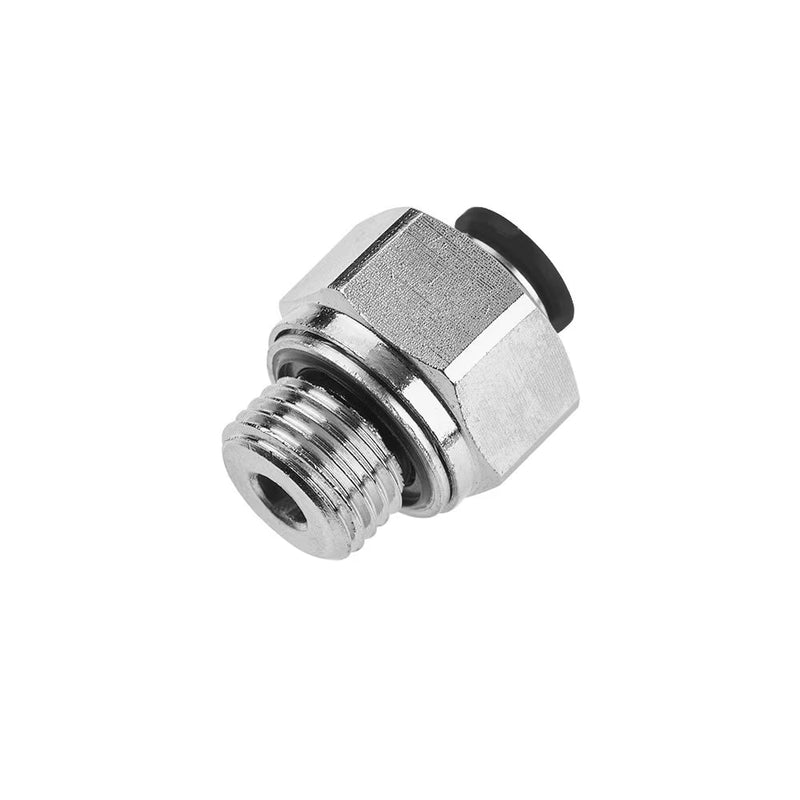

68PLP-4-4G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 1/4" Connector x 1/4" Male BSPP Thread | 3/4" Hex | .86" Length | .188" Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

68PLP-4-4G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 1/4" Connector x 1/4" Male BSPP Thread | 3/4" Hex | .86" Length | .188" Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $48.30 Save $48.30
$120.75
$120.75 - $120.75
$120.75
$72.45
$72.45 - $72.45
$72.45

by Parker Hannifin
Push-to-Connect Fittings:68PLP Male Connector – BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLP-4-4G Parker | 10 |
Series: 68PLP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size Pipe Thread BSPP Hex (C) Length (L) Flow Diameter (D)
68PLP-4-2G 1/4" 1/8" 11/16" .95" .188"
68PLP-4-4G 1/4" 1/4" 3/4" .86" .188"
68PLP-4-6G 1/4" 3/8" 7/8" .85" .188"
68PLP-6-4G 3/8" 1/4" 3/4" 1.16" .310"
68PLP-6-6G 3/8" 3/8" 3/4" .89" .310"
68PLP-6-8G 3/8" 1/2" 7/8" .96" .310"
68PLP-8-6G 1/2" 3/8" 7/8" 1.22" .450"
68PLP-8-8G 1/2" 1/2" 1-1/16" 1.00" .450"
