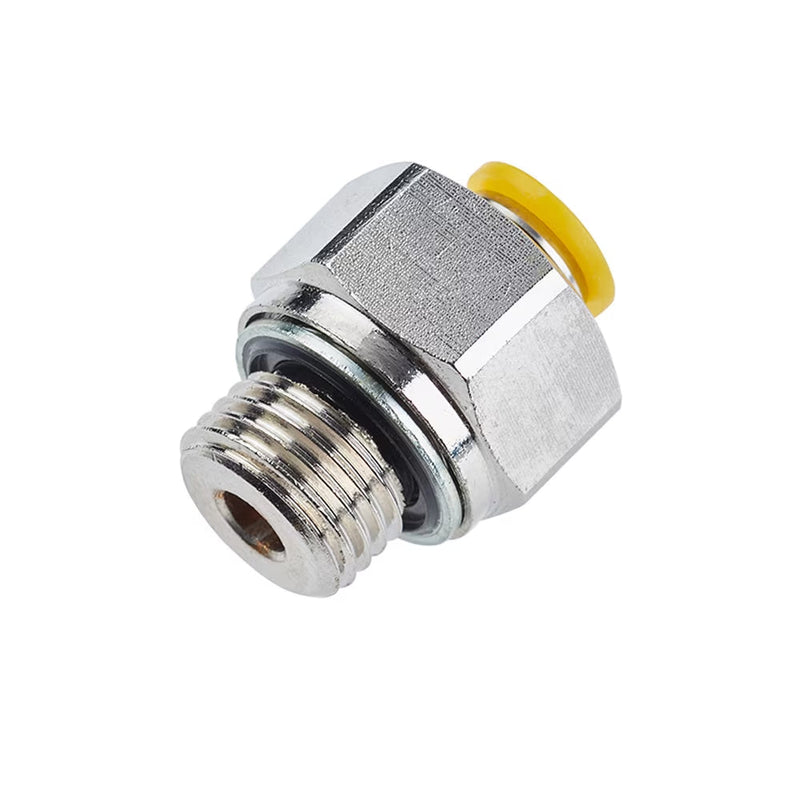

68PLP-4M-2G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 4mm Connector x 1/8" Male BSPP Thread | 9/16" Hex | 23.22mm Length | 3.175mm Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

68PLP-4M-2G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 4mm Connector x 1/8" Male BSPP Thread | 9/16" Hex | 23.22mm Length | 3.175mm Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $22.92 Save $22.92
$57.30
$57.30 - $57.30
$57.30
$34.38
$34.38 - $34.38
$34.38

by Parker Hannifin
Push-to-Connect Fittings:68PLP Male Connector – BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLP-4M-2G Parker | 10 |
Series: 68PLP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size Thread BSPP Hex (C) Length (L) Flow Diameter (D)
68PLP-4M-M5 4 mm M5X0.8 3/8" 21.15 mm 2.693 mm
68PLP-4M-2G 4 mm 1/8" 9/16" 23.32 mm 3.175 mm
68PLP-4M-4G 4 mm 1/4" 3/4" 29.32 mm 3.175 mm
68PLP-6M-4G 6 mm 1/4" 3/4" 28.10 mm 4.775 mm
68PLP-6M-6G 6 mm 3/8" 7/8" 31.90 mm 4.775 mm
68PLP-8M-2G 8 mm 1/8" 9/16" 26.67 mm 6.350 mm
68PLP-8M-4G 8 mm 1/4" 3/4" 30.05 mm 6.350 mm
68PLP-8M-6G 8 mm 3/8" 7/8" 35.14 mm 6.350 mm
68PLP-10M-4G 10 mm 1/4" 3/4" 31.88 mm 7.925 mm
68PLP-10M-6G 10 mm 3/8" 7/8" 26.80 mm 7.925 mm
68PLP-10M-8G 10 mm 1/2" 1-1/16" 31.88 mm 7.925 mm
68PLP-12M-4G 12 mm 1/4" 13/16" 35.76 mm 8.738 mm
68PLP-12M-6G 12 mm 3/8" 7/8" 33.22 mm 9.525 mm
68PLP-12M-8G 12 mm 1/2" 1-1/16" 33.47 mm 9.525 mm
