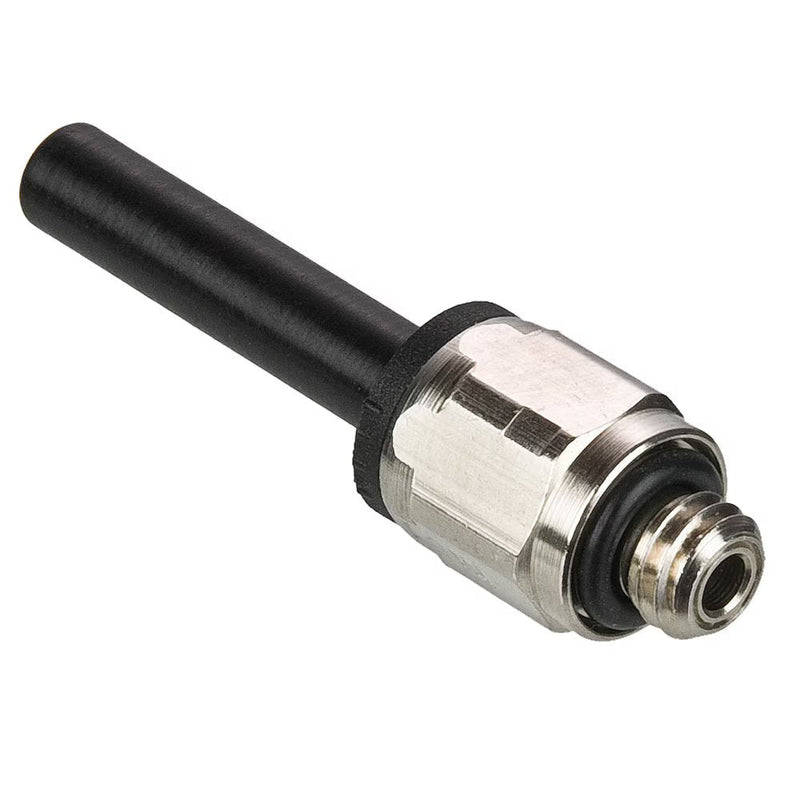

68PLPSP-12M-6G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 12mm Standpipe Tube Size x 3/8" Male BSPP Thread | 20mm Hex | Straight | Glass-Reinforced Nylon | Pack of 10

Save $50.02

$125.05

$125.05 - $125.05

$125.05

$75.03

$75.03 - $75.03

$75.03

by Parker Hannifin
Push-to-Connect Fittings:68PLPSP Male Standpipe - BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLPSP-12M-6G Parker \| 10 \|
Series:	68PLPSP Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP	Hex (C)	H	H1
68PLPSP-4M-M5	4 mm	M5X0.8	8 mm	31.0 mm	16.0 mm
68PLPSP-4M-2G	4 mm	1/8"	13 mm	30.0 mm	13.5 mm
68PLPSP-4M-4G	4 mm	1/4"	16 mm	31.0 mm	13.5 mm
68PLPSP-6M-2G	6 mm	1/8"	13 mm	32.0 mm	13.5 mm
68PLPSP-6M-4G	6 mm	1/4"	16 mm	33.0 mm	13.5 mm
68PLPSP-8M-2G	8 mm	1/8"	13 mm	35.5 mm	12.5 mm
68PLPSP-8M-4G	8 mm	1/4"	16 mm	34.5 mm	10.5 mm
68PLPSP-8M-6G	8 mm	3/8"	20 mm	34.5 mm	10.5 mm
68PLPSP-10M-4G	10 mm	1/4"	16 mm	43.5 mm	17.5 mm
68PLPSP-10M-6G	10 mm	3/8"	20 mm	41.5 mm	15.5 mm
68PLPSP-10M-8G	10 mm	1/2"	24 mm	41.5 mm	15.5 mm
68PLPSP-12M-6G	12 mm	3/8"	20 mm	42.0 mm	12.0 mm
68PLPSP-12M-8G	12 mm	1/2"	24 mm	43.5 mm	12.0 mm
68PLPSP-14M-6G	14 mm	3/8"	20 mm	46.5 mm	14.0 mm
68PLPSP-14M-8G	14 mm	1/2"	24 mm	48.0 mm	13.5 mm
