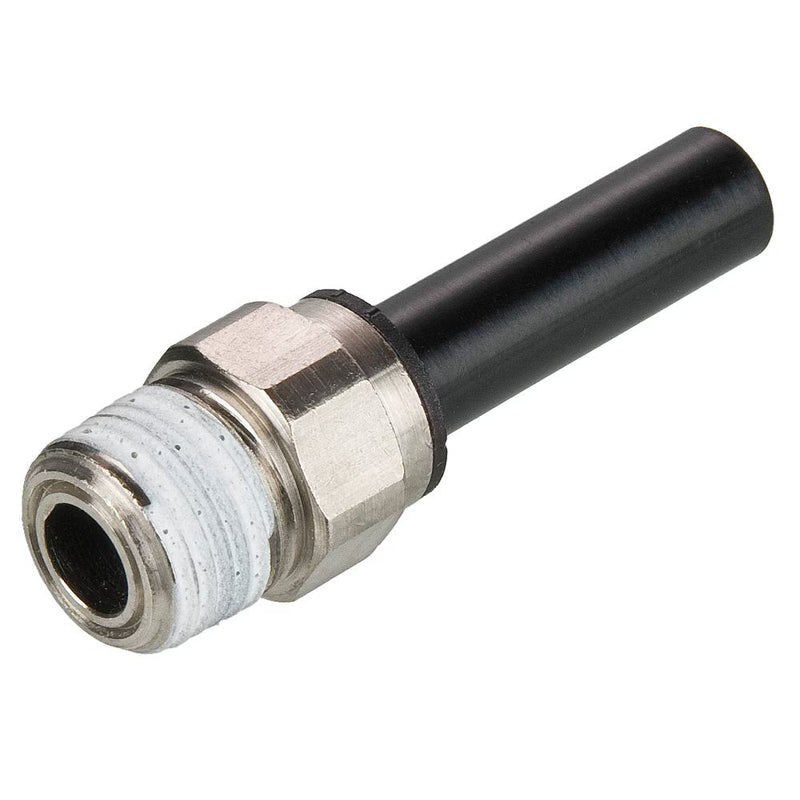

68PLPSP-4M-0 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 5/32" Standpipe Tube Size x 10-32" Male UNF Thread | 8mm Hex | Straight | Pack of 10

68PLPSP-4M-0 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 5/32" Standpipe Tube Size x 10-32" Male UNF Thread | 8mm Hex | Straight | Pack of 10

Save $12.82 Save $12.82
$140.98
$140.98 - $140.98
$140.98
$128.16
$128.16 - $128.16
$128.16

by Parker Hannifin
Push-to-Connect Fittings:W68PLPSP Male Standpipe - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLPSP-4M-0 Parker | 10 |
Series: 68PLPSP Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread NPT / UNF Hex (C) H H1
68PLPSP-4M-0 5/32" 10-32" 8 mm 1.24" -
W68PLPSP-4M-2 5/32" 1/8" 11 mm 1.02" .57"
W68PLPSP-4M-4 5/32" 1/4" 14 mm 1.04" .59"
W68PLPSP-4-2 1/4" 1/8" 11 mm 1.18" .61"
W68PLPSP-4-4 1/4" 1/4" 14 mm 1.12" .57"
W68PLPSP-8M-2 5/16" 1/8" 11 mm 1.16" .43"
W68PLPSP-8M-4 5/16" 1/4" 14 mm 1.12" .39"
W68PLPSP-6-2 3/8" 1/8" 15 mm 1.47" .81"
W68PLPSP-6-4 3/8" 1/4" 15 mm 1.42" .67"
W68PLPSP-6-6 3/8" 3/8" 17 mm 1.42" .61"
W68PLPSP-8-6 1/2" 3/8" 8 mm 1.44" .37"
W68PLPSP-8-8 1/2" 1/2" 21 mm 1.46" .39"
