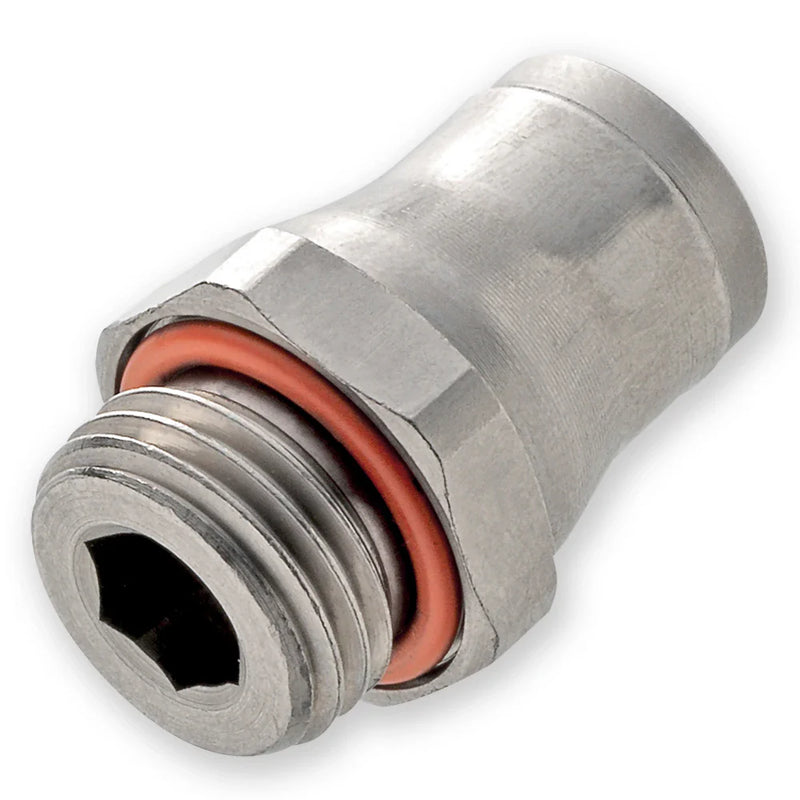

68PLS-6M-4G by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 6 mm Connector x 1/4" Male BSPP Threads | 18.50 mm Height | 18.50 mm Width | Straight | Stainless Steel | Pack of 2

68PLS-6M-4G by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 6 mm Connector x 1/4" Male BSPP Threads | 18.50 mm Height | 18.50 mm Width | Straight | Stainless Steel | Pack of 2

$80.65 - $80.65
$80.65
$104.59
$104.59 - $104.59
$104.59

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLS Male Connector - Metric Tube to BSPP, M5

Package Quantity: 2 Units

Specifications for Variant SKU: 68PLS-6M-4G Parker | 2 |
Series: 68PLS Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size BSPP / M5 F F1 H K
68PLS-4M-M5 4 mm M5X0.8 10 mm 2.5 mm 16.00 mm 11.00 mm
68PLS-4M-2G 4 mm 1/8" 13 mm 3.0 mm 15.00 mm 14.00 mm
68PLS-6M-M5 6 mm M5X0.8 13 mm 2.5 mm 20.50 mm 14.00 mm
68PLS-6M-2G 6 mm 1/8" 13 mm 4.0 mm 18.00 mm 14.00 mm
68PLS-6M-4G 6 mm 1/4" 17 mm 4.0 mm 18.00 mm 18.50 mm
68PLS-8M-2G 8 mm 1/8" 15 mm 5.0 mm 19.00 mm 16.50 mm
68PLS-8M-4G 8 mm 1/4" 17 mm 5.0 mm 20.50 mm 18.50 mm
68PLS-8M-6G 8 mm 3/8" 21 mm 6.0 mm 20.00 mm 23.00 mm
68PLS-10M-4G 10 mm 1/4" 18 mm 7.0 mm 25.00 mm 19.50 mm
68PLS-10M-6G 10 mm 3/8" 21 mm 7.0 mm 25.00 mm 23.00 mm
68PLS-12M-4G 12 mm 1/4" 21 mm 7.0 mm 27.00 mm 23.00 mm
68PLS-12M-6G 12 mm 3/8" 21 mm 9.0 mm 26.50 mm 23.00 mm
