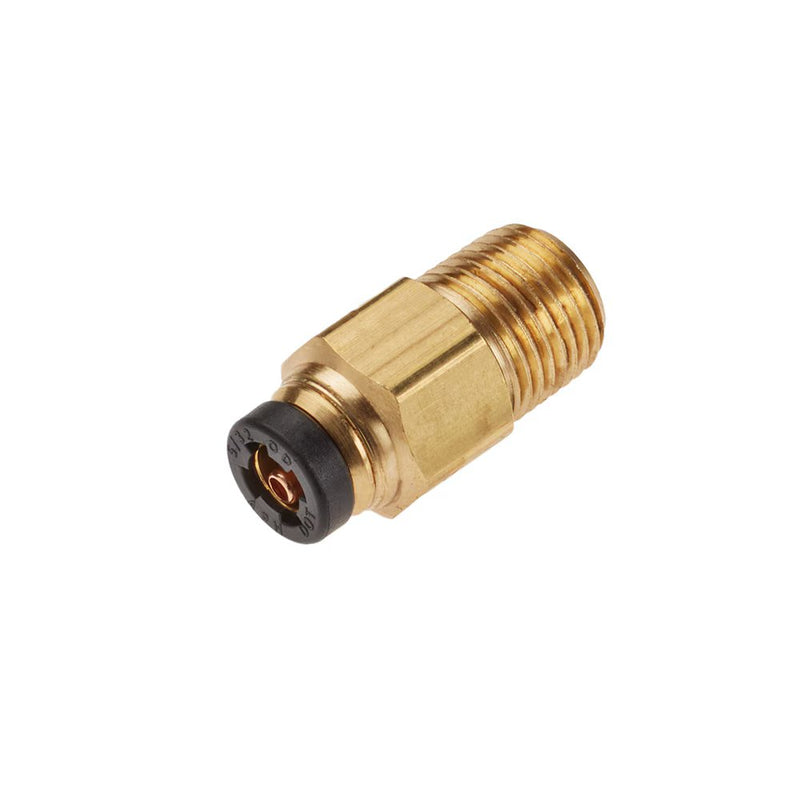

68PTC-4-4 by Parker | Threaded Fitting | 1/4" Push-to-Connect Connector x 1/4" Male NPT Pipe Thread | 9/16" Hex | 1.02" Length | Straight | Brass | Pack of 10

68PTC-4-4 by Parker | Threaded Fitting | 1/4" Push-to-Connect Connector x 1/4" Male NPT Pipe Thread | 9/16" Hex | 1.02" Length | Straight | Brass | Pack of 10

Save $25.60 Save $25.60
$64.00
$64.00 - $64.00
$64.00
$38.40
$38.40 - $38.40
$38.40

by Parker Hannifin
PTC Brass Fittings:Male Connector 68PTC

Package Quantity: 10 Units

Specifications for Variant SKU: 68PTC-4-4 Parker | 10 |
Series: 68PTC Series
Shape (Orientation): Straight
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Hex L
68PTC-5/32-1* 5/32" 1/16" 7/16" .84"
68PTC-5/32-2* 5/32" 1/8" 7/16" .92"
68PTC-5/32-4* 5/32" 1/4" 9/16" 1.02"
68PTC-3-1* 3/16" 1/16" 7/16" .93"
68PTC-3-2* 3/16" 1/8" 7/16" .85"
68PTC-3-4* 3/16" 1/4" 9/16" 1.02"
68PTC-4-2 1/4" 1/8" 1/2" .98"
68PTC-4-4 1/4" 1/4" 9/16" 1.02"
68PTC-4-6 1/4" 3/8" 11/16" .93"
68PTC-4-8 1/4" 1/2" 7/8" 1.12"
68PTC-6-2 3/8" 1/8" 11/16" 1.29"
68PTC-6-4 3/8" 1/4" 11/16" 1.44"
68PTC-6-6 3/8" 3/8" 11/16" 1.44"
68PTC-6-8 3/8" 1/2" 7/8" 1.63"
68PTC-8-4 1/2" 1/4" 7/8" 1.51"
68PTC-8-6 1/2" 3/8" 7/8" 1.63"
68PTC-8-8 1/2" 1/2" 7/8" 1.46"
68PTC-10-6 5/8" 3/8" 1" 1.74"
68PTC-10-8 5/8" 1/2" 1" 1.81"
68PTC-12-8 3/4" 1/2" 1-1/8" 1.89"
68PTC-12-12 3/4" 3/4" 1/4" 1.89"

*5/32 and 3/16 with black button
