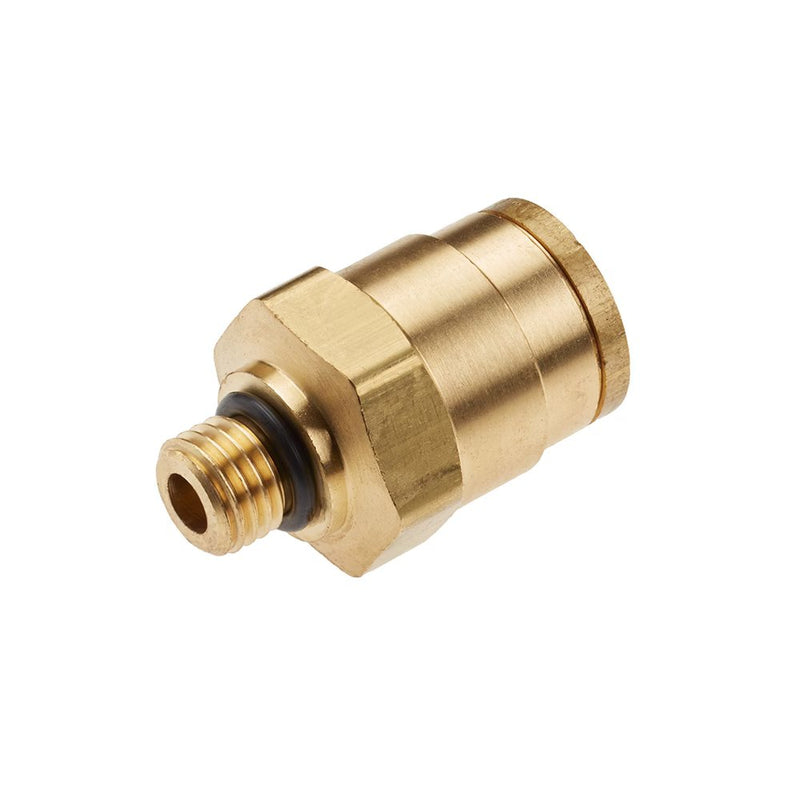

68PTC-8-MA12 by Parker | Threaded Fitting | 1/2" Push-to-Connect Connector x M12X1.5 Male M12 Thread | 7/8" Hex | 1.37" Length | Straight | Brass

68PTC-8-MA12 by Parker | Threaded Fitting | 1/2" Push-to-Connect Connector x M12X1.5 Male M12 Thread | 7/8" Hex | 1.37" Length | Straight | Brass

Save $11.47 Save $11.47
$28.67
$28.67 - $28.67
$28.67
$17.20
$17.20 - $17.20
$17.20

by Parker Hannifin
PTC Brass Fittings:Male Connector Metric Straight Thread 68PTC
Specifications for Variant SKU: 68PTC-8-MA12 Parker
Series: 68PTC Series
Shape (Orientation): Straight
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Thread* Hex (B) L
68PTC-4-MA12 1/4" MA12 11/16" 1.14"
68PTC-4-MA16 1/4" MA16 7/8" 1.21"
68PTC-4-MA22 1/4" MA22 1-1/16" 1.21"
68PTC-6-MA12 3/8" MA12 3/4" 1.31"
68PTC-6-MA16 3/8" MA16 7/8" 1.23"
68PTC-6-MA22 3/8" MA22 1-1/16" 0.74"
68PTC-8-MA12 1/2" MA12 7/8" 1.37"
68PTC-8-MA16 1/2" MA16 7/8" 1.39"
68PTC-8-MA22 1/2" MA22 1-1/16" .91"
68PTC-10-MA12 5/8" MA12 1" 1.67"
68PTC-10-MA16 5/8" MA16 1" 1.61"
68PTC-10-MA22 5/8" MA22 1-1/16" 1.37"

*Per ISO 4039
