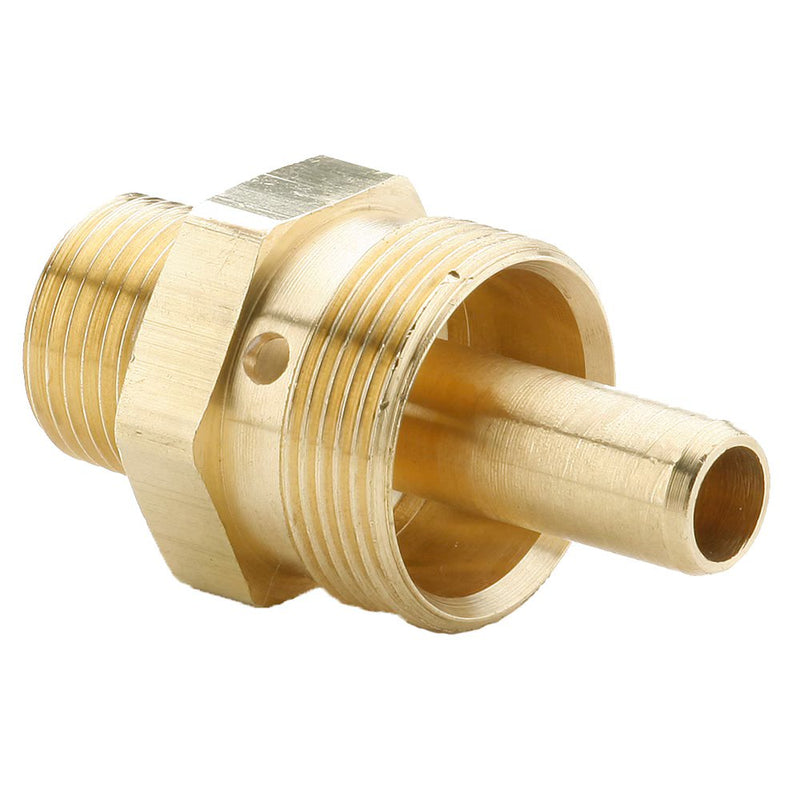

68RB-8-8B by Parker | Air Brake Hose Ends Fittings | 1/2" Hose Size Connector x 1/2" Male Pipe Thread x 1-3/32"-20 Thread | Body Only | 2.07" Length | Straight | Brass | Pack of 5

Save $47.35

$118.38

$118.38 - $118.38

$118.38

$71.03

$71.03 - $71.03

$71.03

by Parker Hannifin
Air Brake Hose Ends Fittings:Male Connector 68RB

Package Quantity: 5 Units

Specifications for Variant SKU: 68RB-8-8B Parker \| 5 \|
Series:	68RB Series
Shape (Orientation):	Straight
Material(s):	Brass

Product Features:	Brass Body Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Markets:	Heavy Duty Truck Trailer
Applications:	Air Lines Frame to Axle
Specification:
Pressure Range:	Up to 400 PSI (27.5 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:	Parker 271 air brake hose SAE J1402 air brake hose


Part Number	Hose Size	Straight Thread	Pipe Thread	Hex	L	D
68RB-6-4B	3/8"	31/32"-20	1/4"	31/32"	1.91"	.281"
68RB-6-6B	3/8"	31/32"-20	3/8"	31/32"	1.91"	.281"
68RB-6-8B	3/8"	31/32"-20	1/2"	31/32"	2.06"	.281"
68RB-8-6B	1/2"	1-3/32"-20	3/8"	1-1/8"	1.91"	.390"
68RB-8-8B	1/2"	1-3/32"-20	1/2"	1-1/8"	2.07"	.281"
