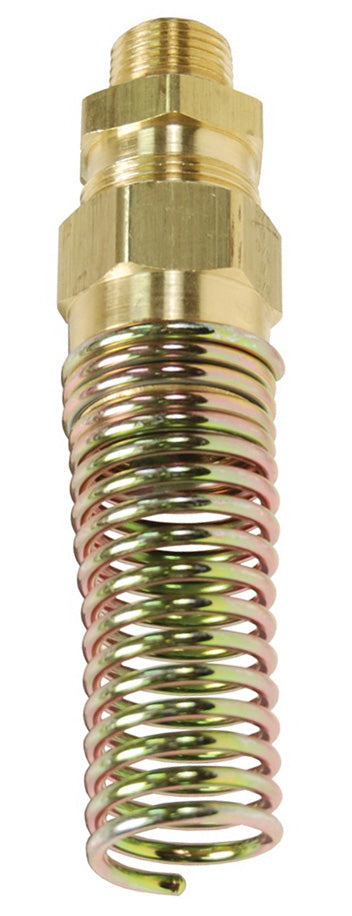

68RBSG-0604 by Dixon Valve | Air Brake Fitting for Rubber Hose | Male Connector with Spring Guard | 1/4" Male NPT x 3/8" Tube OD | Brass Alloy 360

68RBSG-0604 by Dixon Valve | Air Brake Fitting for Rubber Hose | Male Connector with Spring Guard | 1/4" Male NPT x 3/8" Tube OD | Brass Alloy 360

Save $6.07 Save $6.07
$15.18
$15.18 - $15.18
$15.18
$9.11
$9.11 - $9.11
$9.11

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Male Connector with Spring Guard

For use with SAEJ1402 air brake hose in making hose assemblies
Specifications for Variant SKU: 68RBSG-0604 Dixon
Shape (Orientation): Straight
Material(s): Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Hose Size Pipe Thread Hex
68RBSG-0604 3/8" 1/4" 1-1/16"
68RBSG-0606 3/8" 3/8" 1-1/16"
68RBSG-0608 3/8" 1/2" 1-1/16"
68RBSG-0806 1/2" 3/8" 1-1/4"
68RBSG-0808 1/2" 1/2" 1-1/4"
