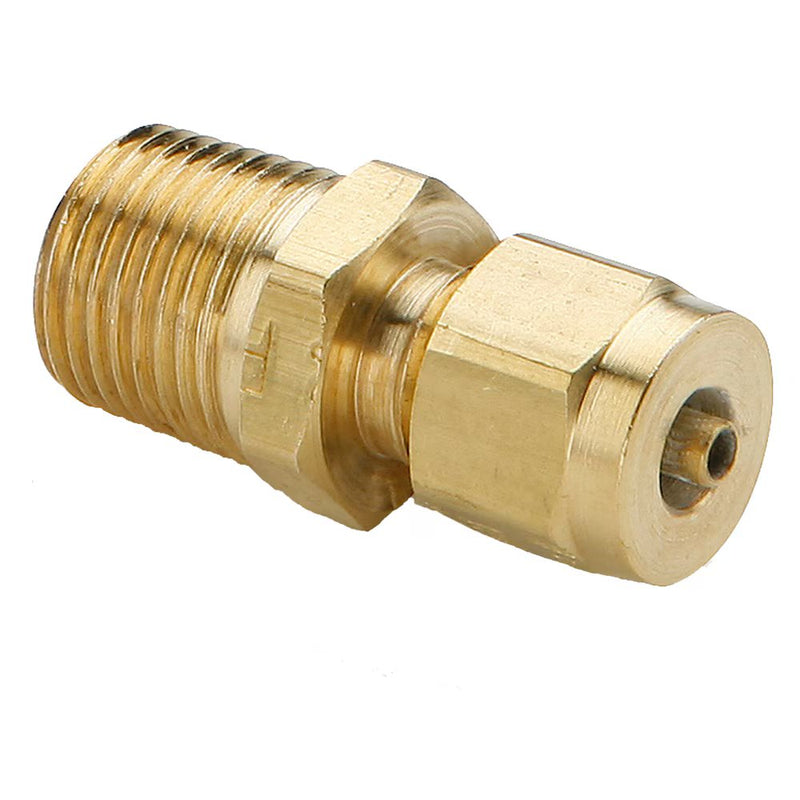

68TF-5/32-2 by Parker | Transmission Fitting | 5/32" Tube Size Connector x 1/8" Male Pipe Thread | 7/16" Hex | .96" Length | Straight | Brass | Pack of 25

Save $21.59

$237.48

$237.48 - $237.48

$237.48

$215.89

$215.89 - $215.89

$215.89

by Parker Hannifin
Transmission Fittings:Male Connector 68TF

Package Quantity: 25 Units

Quantity

Specifications for Variant SKU: 68TF-5/32-2 Parker \| 25 \|
Series:	68TF Series
Shape (Orientation):	Straight
Material(s):	Brass

Specification:
Product Features:	Brass Body D.O.T. Approved with Staked in Tube Support 3/16” & 5/32” Tube sizes Slotted Sleeve Nickel Plated Versions Available for Bio-diesel
Markets:	Heavy Duty Truck
Applications:	Air Shift Transmissions Seat Controls Dash Controls
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Pipe Thread	D	L	Straight Thread	M	Hex (C)
68TF-2-1	1/8"	1/16"	.109"	.96"	5/16"-24	.78"	11/32"
68TF-2-2	1/8"	1/8"	.109"	.96"	5/16"-24	.78"	7/16"
68TF-5/32-1	5/32"	1/16"	.068"	.84"	5/16"-24	.66"	11/32"
68TF-5/32-2	5/32"	1/8"	.068"	.96"	5/16"-24	.78"	7/16"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
