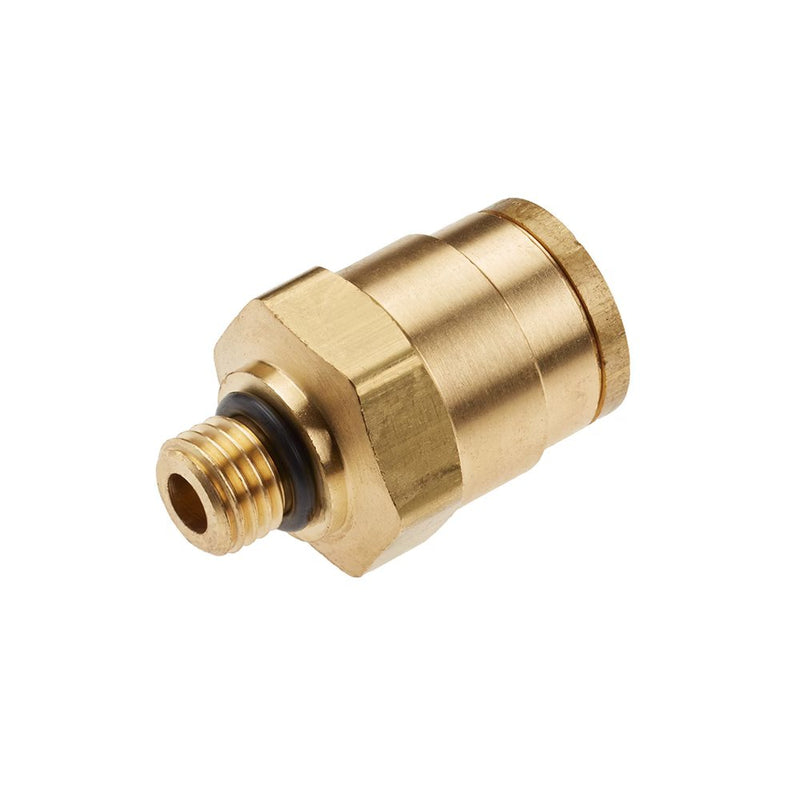

68PTC-6-MA22 by Parker | Threaded Fitting | 3/8" Push-to-Connect Connector x M22X1.5 Male M22 Thread | 1-1/16" Hex | .74" Length | Straight | Brass

Save $1.75

$21.58

$21.58 - $21.58

$21.58

$19.83

$19.83 - $19.83

$19.83

by Parker Hannifin
PTC Brass Fittings:Male Connector Metric Straight Thread 68PTC

Quantity

Specifications for Variant SKU: 68PTC-6-MA22 Parker
Series:	68PTC Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Thread*	Hex (B)	L
68PTC-4-MA12	1/4"	MA12	11/16"	1.14"
68PTC-4-MA16	1/4"	MA16	7/8"	1.21"
68PTC-4-MA22	1/4"	MA22	1-1/16"	1.21"
68PTC-6-MA12	3/8"	MA12	3/4"	1.31"
68PTC-6-MA16	3/8"	MA16	7/8"	1.23"
68PTC-6-MA22	3/8"	MA22	1-1/16"	0.74"
68PTC-8-MA12	1/2"	MA12	7/8"	1.37"
68PTC-8-MA16	1/4"	MA16	7/8"	1.39"
68PTC-8-MA22	1/2"	MA22	1-1/16"	.91"
68PTC-10-MA12	5/8"	MA12	1"	1.67"
68PTC-10-MA16	5/8"	MA16	1"	1.61"
68PTC-10-MA22	5/8"	MA22	1-1/16"	1.37"

*Per ISO 4039
