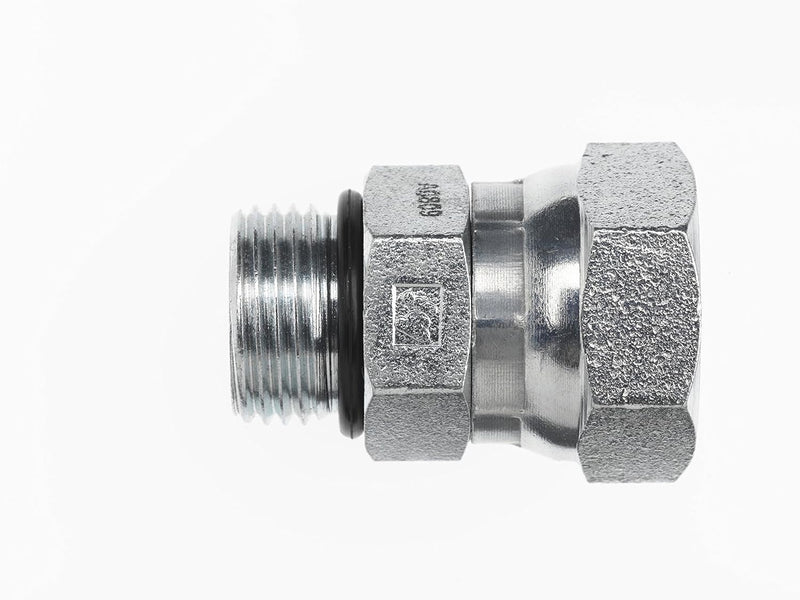

6900-16-12-O by Brennan Inc. | -16 Male O-Ring Boss x -12 Female Pipe Swivel | Straight | Steel

6900-16-12-O by Brennan Inc. | -16 Male O-Ring Boss x -12 Female Pipe Swivel | Straight | Steel

$9.68 - $9.68
$9.68
$12.28
$12.28 - $12.28
$12.28

Brennan Inc.
Tube Fittings & Adapters: 6900 - Male O-Ring Boss x Female Pipe Swivel Straight
Specifications for Variant SKU: 6900-16-12-O Brennan
Shape (Orientation): Straight
Ends Configuration: 1in Male O-Ring Boss, 3/4in Female NPSM
Material(s): Steel
Special Properties: Swivel
Part Number Material Tube O.D. B1 SAEORB A2 NPSM B1Drill A2Drill L1 Length L Length C Hex C4 Hex
6900-04-02-O Steel 1/4" 7/16-20" 1/8-27" 0.172" 0.110" 1.00" 1.14" 0.562" 0.562"
6900-04-04-O Steel 1/4" 7/16-20" 1/4-18" 0.172" 0.210" 1.110" 1.300" 0.688" 0.562"
6900-04-06-O Steel 1/4" 7/16-20" 3/8-18" 0.172" 0.340" 1.15" 1.36" 0.875" 0.688"
6900-04-08-O Steel 1/4" 7/16-20" 1/2-14" 0.172" 0.440" 1.210" 1.490" 1.000" 0.812"
6900-05-04-O Steel 5/16" 1/2-20" 1/4-18" 0.210" 0.210" 1.090" 1.280" 0.688" 0.625"
6900-05-08-O Steel 5/16" 1/2-20" 1/2-14" 0.234" 0.460" 1.30" 1.58" 1.000" 0.812"
6900-06-04-O Steel 3/8" 9/16-18" 1/4-18" 0.297" 0.210" 1.14" 1.26" 0.688" 0.688"
6900-06-06-O Steel 3/8" 9/16-18" 3/8-18" 0.297" 0.320" 1.17" 1.46" 0.875" 0.688"
6900-06-08-O Steel 3/8" 9/16-18" 1/2-14" 0.297" 0.440" 1.290" 1.570" 1.000" 0.812"
6900-08-04-O Steel 1/2" 3/4-16" 1/4-18" 0.391" 0.210" 1.170" 1.360" 0.688" 0.875"
6900-08-06-O Steel 1/2" 3/4-16" 3/8-18" 0.391" 0.320" 1.23" 1.40" 0.875" 0.875"
6900-08-08-O Steel 1/2" 3/4-16" 1/2-14" 0.391" 0.460" 1.30" 1.55" 1.000" 0.875"
6900-08-12-O Steel 1/2" 3/4-16" 3/4-14" 0.391" 0.610" 1.41" 1.76" 1.250" 1.000"
6900-10-06-O Steel 5/8" 7/8-14" 3/8-18" 0.484" 0.340" 1.26" 1.47" 0.875" 1.000"
6900-10-08-O Steel 5/8" 7/8-14" 1/2-14" 0.484" 0.440" 1.40" 1.61" 1.000" 1.000"
6900-10-12-O Steel 5/8" 7/8-14" 3/4-14" 0.484" 0.635" 1.37" 1.72" 1.250" 1.000"
6900-12-06-O Steel 3/4" 1-1/16-12" 3/8-18" 0.609" 0.320" 1.410" 1.620" 0.875" 1.250"
6900-12-08-O Steel 3/4" 1-1/16-12" 1/2-14" 0.609" 0.440" 1.45" 1.73" 1.000" 1.250"
6900-12-12-O Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 0.609" 1.60" 1.95" 1.250" 1.250"
6900-12-16-O Steel 3/4" 1-1/16-12" 1-11-1/2" 0.609" 0.780" 1.700" 2.050" 1.500" 1.500"
6900-14-12-O Steel 7/8" 1-3/16-12" 3/4-14" 0.719" 0.610" 1.610" 1.960" 1.250" 1.375"
6900-16-08-O Steel 1" 1-5/16-12" 1/2-14" 0.844" 0.440" 1.620" 1.900" 1.000" 1.500"
6900-16-12-O Steel 1" 1-5/16-12" 3/4-14" 0.844" 0.610" 1.73" 2.08" 1.250" 1.500"
6900-16-16-O Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 0.780" 1.71" 2.06" 1.500" 1.500"
6900-16-20-O Steel 1" 1-5/16-12" 1-1/4-11-1/2" 0.844" 1.085" 1.900" 2.320" 1.875" 1.875"
6900-20-12-O Steel 1-1/4" 1-5/8-12" 3/4-14" 1.078" 0.610" 1.66" 2.01" 1.250" 1.875"
6900-20-16-O Steel 1-1/4" 1-5/8-12" 1-11-1/2" 1.078" 0.780" 1.79" 2.14" 1.500" 1.875"
6900-20-20-O Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1.010" 1.010" 1.790" 2.210" 1.875" 1.875"
6900-24-20-O Steel 1-1/2" 1-7/8-12" 1-1/4-11-1/2" 1.312" 1.087" 1.75" 2.17" 1.875" 2.125"
6900-24-24-O Steel 1-1/2" 1-7/8-12" 1-1/2-11-1/2" 1.312" 1.250" 1.95" 2.370" 2.125" 2.125"
6900-32-32-O Steel 2" 2-1/2-12" 2-11-1/2" 1.781" 1.781" 2.000" 2.420" 2.625" 2.750"

6900-04-04-O-SS Stainless Steel 1/4" 7/16-20" 1/4-18" 0.172" 0.210" 1.11" 1.30" 0.688" 0.562"
6900-06-06-O-SS Stainless Steel 3/8" 9/16-18" 3/8-18" 0.297" 0.320" 1.17" 1.46" 0.875" 0.688"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
