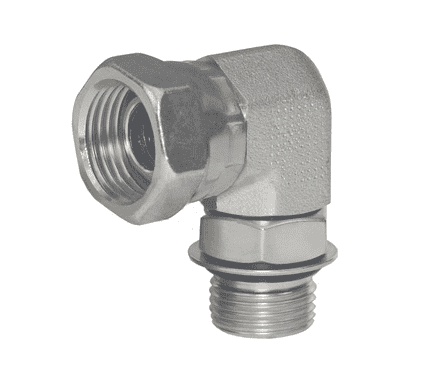

6901-16-20 Dixon Zinc Plated Steel 90 deg. 1-5/16"-12 Male SAE O-Ring Boss x 1-1/4"-11-1/2 Female NPSM Swivel Nut

6901-16-20 Dixon Valve Zinc Plated Steel 90 deg. 1-5/16"-12 Male SAE O-Ring Boss x 1-1/4"-11-1/2 Female NPSM Swivel Nut

Save $22.77 Save $22.77
$56.93
$56.93 - $56.93
$56.93
$34.16
$34.16 - $34.16
$34.16

ORB Fittings - 90 deg. SAE O-Ring Boss x Female NPSM Swivel Nut - Zinc Plated Steel
Specifications for Variant SKU: 6901-16-20 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male O-Ring Boss, 1-1/4in Female NPSM
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male SAE O-Ring Boss Female NPSM Swivel Working Pressure Weight (Lbs.)
6901-4-4 7/16"-20 1/4"-18 4500 PSI 0.1240
6901-4-6 7/16"-20 3/8"-18 4000 PSI 0.3000
6901-6-4 9/16"-18 1/4"-18 4000 PSI 0.1400
6901-6-6 9/16"-18 3/8"-18 4000 PSI 0.2600
6901-6-8 9/16"-18 1/2"-14 4000 PSI 0.4000
6901-8-6 3/4"-16 3/8"-18 3500 PSI 0.4100
6901-8-8 3/4"-16 1/2"-14 4000 PSI 0.4200
6901-8-12 3/4"-16 3/4"-14 3000 PSI 0.7360
6901-10-8 7/8"-14 1/2"-14 3500 PSI 0.4430
6901-10-12 7/8"-14 3/4"-14 3000 PSI 0.7500
6901-12-8 1-1/16"-12 1/2"-14 3500 PSI 0.7530
6901-12-12 1-1/16"-12 3/4"-14 3000 PSI 0.8220
6901-12-16 1-1/16"-12 1"-11-1/2 2500 PSI 1.1430
6901-16-12 1-5/16"-12 3/4"-14 3000 PSI 1.1870
6901-16-16 1-5/16"-12 1"-11-1/2 2500 PSI 1.2500
6901-16-20 1-5/16"-12 1-1/4"-11-1/2 2000 PSI 1.9300
6901-20-20 1-5/8"-12 1-1/4"-11-1/2 2000 PSI 2.3310
