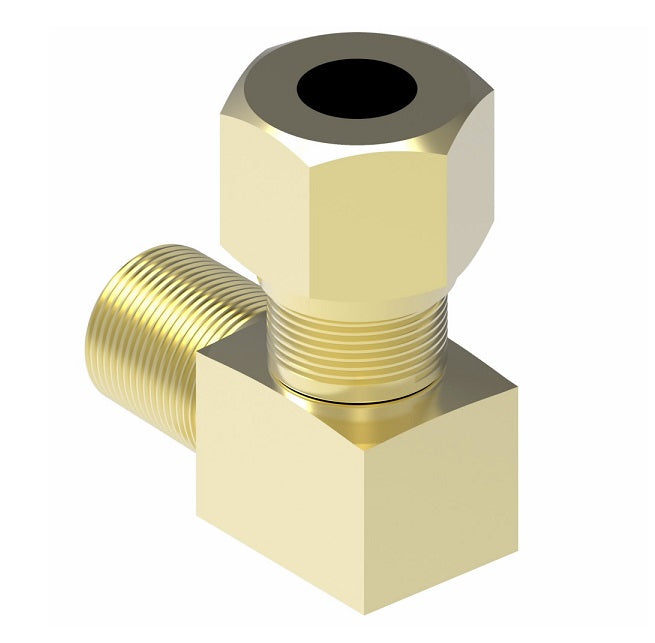

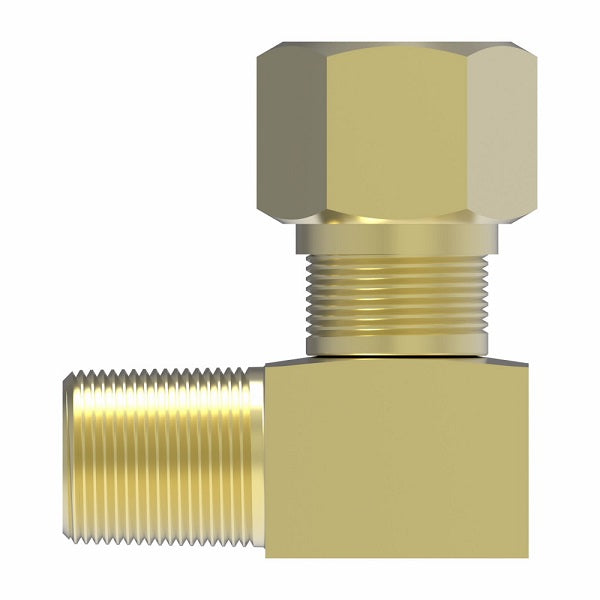

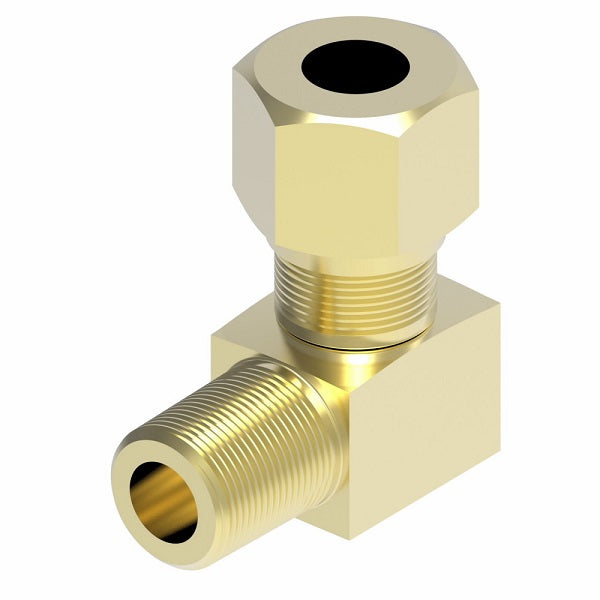

691X6X6 by Danfoss | SelfAlign Adapter | Male 90° Elbow | 3/8" Tube OD x 3/8" Male NPTF | Brass
691X6X6 by Danfoss | SelfAlign Adapter | Male 90° Elbow | 3/8" Tube OD x 3/8" Male NPTF | Brass
691X6X6 by Danfoss | SelfAlign Adapter | Male 90° Elbow | 3/8" Tube OD x 3/8" Male NPTF | Brass
691X6X6 by Danfoss | SelfAlign Adapter | Male 90° Elbow | 3/8" Tube OD x 3/8" Male NPTF | Brass

691X6X6 by Danfoss | SelfAlign Adapter | Male 90° Elbow | 3/8" Tube OD x 3/8" Male NPTF | Brass

$11.47 - $11.47
$11.47
$11.47 - $11.47
$11.47

Aeroquip® by Danfoss
SelfAlign Adapter - Male Elbow
SelfAlign End x Male NPTF End
90° Elbow
Specifications for Variant SKU: 691X6X6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Tube Compression, 3/8in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Male Pipe Thread D D1 M N
691X2X1 1/8" 1/16" 0.109" 0.125" 0.54" 0.66"
691X2 1/8" 1/8" 0.094" 0.219" 0.60" 0.67"
691X3 3/16" 1/8" 0.125" 0.188" 0.62" 0.69"
691X4 1/4" 1/8" 0.188" 0.219" 0.62" 0.75"
691X4X4 1/4" 1/4" 0.188" 0.219" 0.63" 0.84"
691X5 5/16" 1/8" 0.250" 0.250" 0.62" 0.75"
691X5X4 5/16" 1/4" 0.250" 0.344" 0.69" 0.84"
691X6X2 3/8" 1/8" 0.312" 0.235" 0.69" 0.69"
691X6 3/8" 1/4" 0.312" 0.344" 0.75" 0.93"
691X6X6 3/8" 3/8" 0.312" 0.437" 0.85" 0.94"
691X6X8 3/8" 1/2" 0.312" 0.562" 1.04" 1.14"
691X8X4 1/2" 1/4" 0.406" 0.312" 0.84" 0.94"
691X8 1/2" 3/8" 0.406" 0.407" 0.94" 1.12"
691X8X8 1/2" 1/2" 0.406" 0.531" 0.94" 1.31"
691X10 5/8" 1/2" 0.500" 0.564" 1.06" 1.31"
